Product Summary
The A25L16PTM-F is a 16 Mbit, low voltage, serial flash memory with 85MHz SPI bus interface. The A25L16PTM-F is a 16 Mbit (2M x 8) Serial Flash Memory, with advanced write protection mechanisms, accessed by a high speed SPI-compatible bus. The memory can be programmed 1 to 256 bytes at a time, using the Page Program instruction. The memory of the A25L16PTM-F is organized as 32 sectors, each containing 256 pages. Each page is 256 bytes wide. Thus, the whole memory can be viewed as consisting of 8192 pages, or 2,097,152 bytes. The whole memory can be erased using the Bulk Erase instruction, or a sector at a time, using the Sector Erase instruction.
Parametrics
A25L16PTM-F absolute maximum ratings: (1)Storage Temperature (TSTG): -65℃ to + 150℃; (2)Lead Temperature during Soldering. D.C. Voltage on Any Pin to Ground Potential: -0.6V to VCC+0.6V; (3)Transient Voltage (<20ns) on Any Pin to Ground Potential: -2.0V to VCC+2.0V; (4)Supply Voltage (VCC): -0.6V to +4.0V; (5)Electrostatic Discharge Voltage (Human Body model) (VESD): -2000V to 2000V.
Features
A25L16PTM-F features: (1)16 Mbit of Flash Memory; (2)Flexible Sector Architecture (4/4/8/16/32)KB/64x31 KB; (3)Bulk Erase (16 Mbit) in 20s (typical); (4)Sector Erase (512 Kbit) in 1s (typical); (5)Page Program (up to 256 Bytes) in 1.5ms (typical); (6)2.7 to 3.6V Single Supply Voltage; (7)SPI Bus Compatible Serial Interface; (8)85MHz Clock Rate (maximum); (9)Fast Read Dual Operation Instruction (3Bh/BBh); (10)Deep Power-down Mode 1μA (typical); (11)Top or Bottom Boot Block Configuration Available.

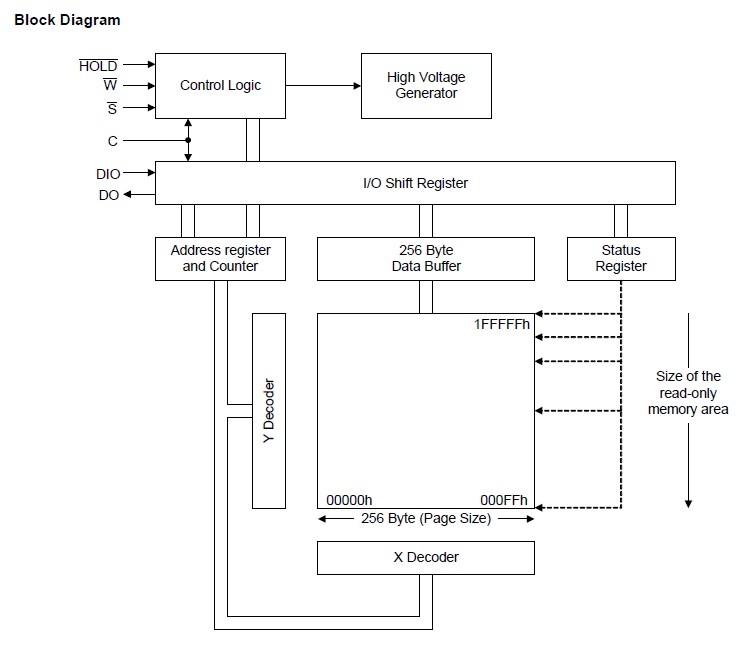

Diagrams
 |
