Product Summary

The A5895SLW serial input, latched source driver is designed for applications emphasizing low output saturation voltages and currents to -250mA per output. The A5895SLW merges an 8-bit CMOS shift register, associated CMOS latches, and CMOS control logic (strobe and output enable) with medium current emitter-follower (sourcing) outputs) . Typical applications of the A5895SLW include incandescent or LED displays (both directly driven and multiplexed) , non-impact (i.e., thermal) printers, relays, and solenoids.

Parametrics

A5895SLW absolute maximum ratings: (1) Low Output-Saturation Voltage; (2) Source Outputs to 50V; (3) Output Current to -250mA; (4) To 3.3MHz Data-lnput Rate; (5) Low-Power CMOS Logic & Latches.

Features

A5895SLW features: (1) Output Voltage, VOUT: 50V; (2) Logic Supply Voltage Range, VDD: 4.5 to 12V; (3) Driver Supply Voltage Range, VBB: 5 to 50V; (4) Input Voltage Range,VIN: -0.3 to VDD +3V; (5) Continuous Output Current, IOUT: -250mA; (6) Operating Temperature Range, TA: -20 to +85°C; (7) Storage Temperature Range, Ts: -55 to +150°C.

Diagrams

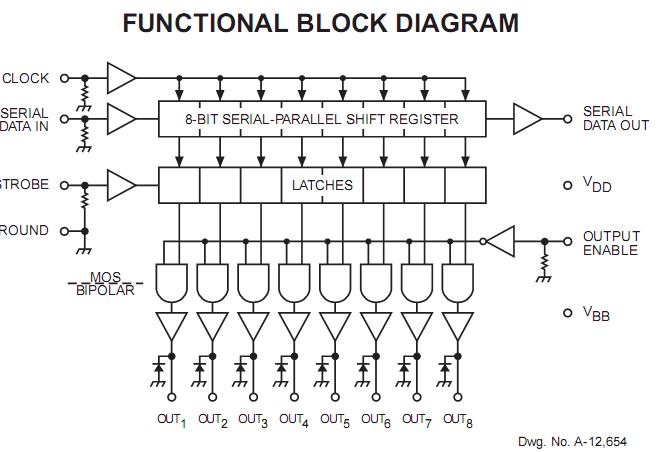

A5895SLW Block Diagram
