Product Summary

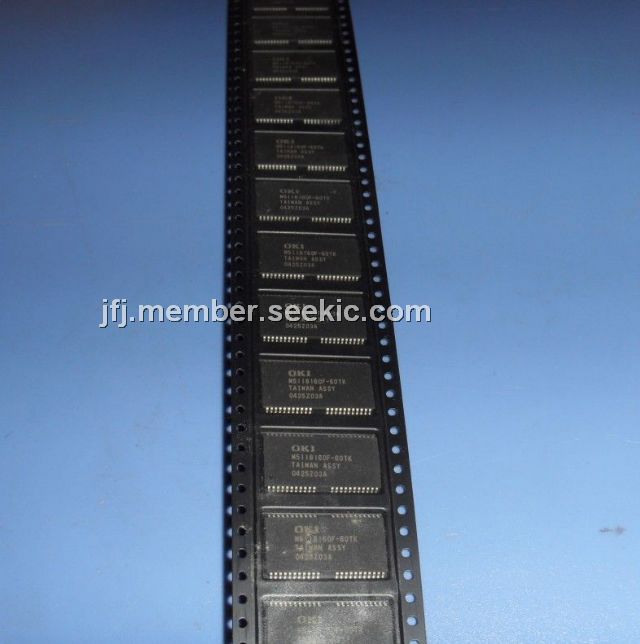

The M5118160F-60TK is a 1,048,576-word * 16-bit dynamic RAM fabricated in Oki’s silicon-gate CMOS technology. The M5118160F-60TK achieves high integration, high-speed operation, and low-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/double-layer metal CMOS process. The M5118160F-60TK is available in a 42-pin plastic SOJ or 50/44-pin plastic TSOP.
Parametrics
M5118160F-60TK absolute maximum ratings: (1)Voltage on Any Pin Relative to VSS:–0.5 to VCC+ 0.5V; (2)Voltage VCC Supply relative to VSS:–0.5 to 7V; (3)Short Circuit Output Current:50 mA; (4)Power Dissipation:1W; (5)Operating Temperature:0℃ to 70℃; (6)Storage Temperature:–55℃ to 150℃.
Features
M5118160F-60TK features: (1)1,048,576-word * 16-bit configuration; (2)Single 5V power supply, ±10% tolerance; (3)Input: TTL compatible, low input capacitance; (4)Output: TTL compatible, 3-state; (5)Refresh: 1024 cycles/16ms; (6)Fast page mode, read modify write capability; (7)CAS before RAS refresh, hidden refresh, RAS-only refresh capability; (8)Packages: 50/44-pin 400mil plastic TSOP(TSOPII50/44-P-400-0.80-K).

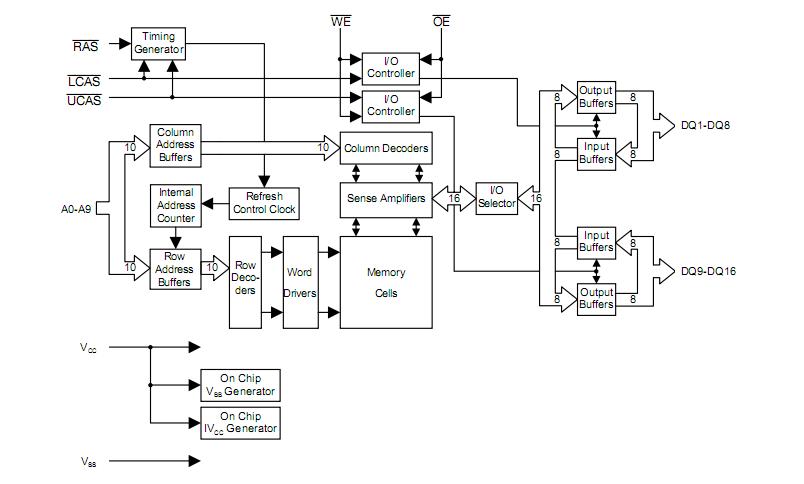

Diagrams
 |
