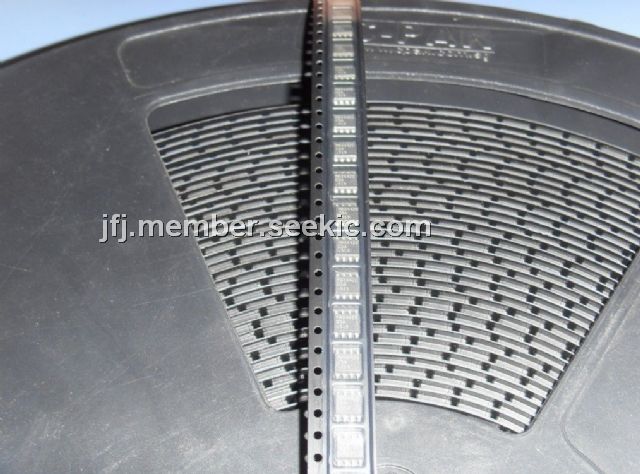

Product Summary

The MAX4420CSA is a single-output MOSFET driver. It is designed to translate TTL/CMOS inputs to high-voltage/high-current outputs. The MAX4420CSA interface easily with either CMOS or bipolar switch-mode controller beacuse its logic input draw under 10uA. The device has a non inverting output. The applications of the MAX4420CSA are switching power supplies, DC-DC converters, motor controllers, pin-diode drivers.

Parametrics

MAX4420CSA absolute maximum ratings: (1)supply voltage VDD to GND:+20V; (2)input voltage:-0.3V to VDD+0.3V; (3)continuous power dissipation:471mW; (4)operating temperature ranges:0℃ to +70℃; (5)storage temperature range:-65℃ to +160℃; (6)lead temperature:+300℃.

Features

MAX4420CSA features: (1)TTL/CMOS compatible; (2)4.5V to 18V supply range; (3)1.5Ω output resistance; (4)6A peak output current; (5)40ns delay time; (6)25ns rise and fall times; (7)output swings to within 25mV of VDD and GND.

Diagrams

MAX4420CSA circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MAX4420CSA
MAX4420CSA
Maxim Integrated Products
Power Driver ICs 6A MOSFET Driver (Noninverting)
Data Sheet
Negotiable
MAX4420CSA+
MAX4420CSA+
Maxim Integrated Products
Power Driver ICs 6A MOSFET Driver (Noninverting)
Data Sheet
0-1: $2.68
1-25: $1.80
25-50: $1.30
50-100: $1.28
MAX4420CSA-T
MAX4420CSA-T
Maxim Integrated Products
Power Driver ICs 6A MOSFET Driver (Noninverting)
Data Sheet
Negotiable
MAX4420CSA+T
MAX4420CSA+T
Maxim Integrated Products
Power Driver ICs 6A MOSFET Driver (Noninverting)
Data Sheet
0-1965: $1.20
1965-2500: $1.20
