Product Summary
The MB90487A is a 16-bit general-purpose FUJITSU microcontroller. The MB90487A is designed for process control in consumer devices and other applications requiring high-speed real-time processing. The F2MC-16LX CPU core instruction set retains the AT architecture of the F2MC*1 family, with additional instructions for high-level languages, expanded addressing mode, enhanced multiply-drive instructions, and complete bit processing. In addition, a 32-bit accumulator is provided to enable long-word processing.
Parametrics
MB90487A absolute maximum ratings: (1)Power supply voltage, VCC3: VSS -0.3 to VSS + 4.0 V; VCC5: VSS -0.3 to VSS + 7.0 V; AVCC VSS -0.3 to VSS + 4.0 V; AVRH: VSS -0.3 VSS + 4.0 V; (2)Input voltage, VI: VSS -0.3 VSS + 4.0 V; VSS -0.3 VSS + 7.0 V; (3)Output voltage, VO: VSS -0.3 VSS + 4.0 V; VSS -0.3 VSS + 7.0 V; (4)Maximum clamp current, ICLAMP: -2.0 to +2.0 mA; (5)Total maximum clamp current, ΣICLAMP: 20 mA.
Features
MB90487A features: (1)Clock Minimum instruction execution time; (2)Maximum memory space: 16 Mbytes; (3)Instruction set optimized for controller applications Supported data types (bit, byte, word, or long word) Typical addressing modes (23 types) 32-bit accumulator for enhanced high-precision calculation. Enhanced signed multiplication/division instruction and RETI instruction functions; (4)Instruction set designed for high-level programming language (C) and multi-task operations System stack pointer adopted. Instruction set symmetry and barrel shift instructions; (5)Non-multiplex bus/multiplex bus compatible; (6)Enhanced execution speed 4-byte instruction queue; (7)Enhanced interrupt functions 8 levels setting with programmable priority, 8 external interrupts; (8)Data transfer function (μDMAC) Up to 16 channels; (9)Embedded ROM.

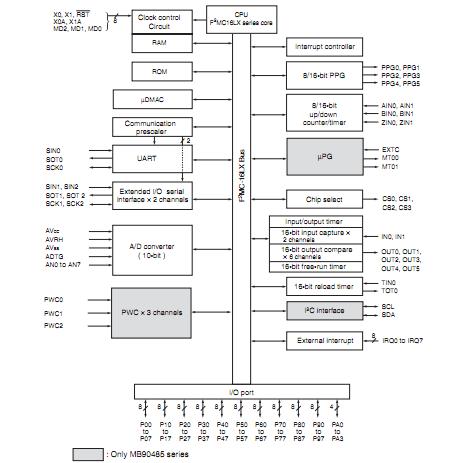

Diagrams
