Product Summary

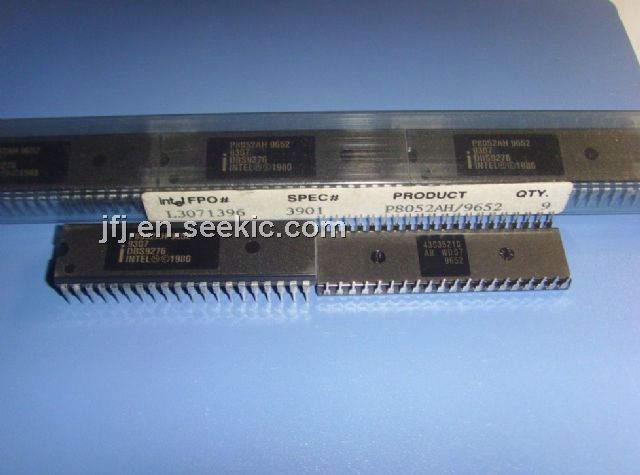

The P8052AH is an 8-bit control-oriented microcontroller optimized for control applications. Byte-processing and numerical operations on small data structures are facilitated by a variety of fast addressing modes for accessing the internal RAM. The instruction set provides a convenient menu of 8-bit arithmetic instructions, including multiply and divide instructions.
Parametrics
P8052AH absolute maximum ratings: (1)ambient temperature under bias: -40 to 85℃; (2)storage temperature: -65 to 150℃; (3)Voltage on EA/VPP pin to VSS: -0.5 to 13V; (4)Voltage on any other pin to VSS: -0.5 to 7V; (5)Power dissipation: 1.5W.
Features
P8052AH features: (1)High performance HMOS process; (2)Internal timers/event counters; (3)2-level interrupt priority structure; (4)32 I/O lines (four 8-bit ports); (5)64K external program memory space; (6)Security feature protects EPROM parts against software piracy; (7)Boolean processor; (8)Bit-addressable RAM; (9)Programmable full duplex serial channel; (10)111 instructions; (11)64K external data memory space; (12)Extended temperature range(-40 to 85℃).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 P8052AH |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
P8052AH |
Other |
|
Data Sheet |
Negotiable |
|
||||
