Product Summary
The SN74LS06DBR is a HEX inverter buffer with open collector high voltage outputs. The hex inverter buffer/driver SN74LS06DBR features high-voltage open-collector outputs to interface with high-level circuits (such as MOS), or for driving high-current loads, and also are characterized for use as inverter buffers for driving TTL inputs. The SN74LS06DBR has a rated output voltage of 30 V, and the SN74LS06DBR has a rated output voltage of 15 V. The maximum sink current for the SN54LS06 is 30 mA, and for the SN74LS06 and SN74LS16 it is 40 mA.
Parametrics
SN74LS06DBR absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Input voltage, VI: 7 V; (3)Output voltage, VO: SN54LS06, SN74LS06: 30 V; (4)SN74LS16: 15 V; (5)Package thermal impedance, θJA: D package: 86℃/W; (6)DB package: 96℃/W; (7)N package: 80℃/W; (8)NS package: 76℃/W; (9)Storage temperature range, Tstg: 65℃ to 150℃.
Features
SN74LS06DBR features: (1)Convert TTL Voltage Levels to MOS Levels; (2)High Sink-Current Capability; (3)Input Clamping Diodes Simplify System Design; (4)Open-Collector Driver for Indicator Lamps and Relays; (5)Inputs Fully Compatible With Most TTL Circuits.

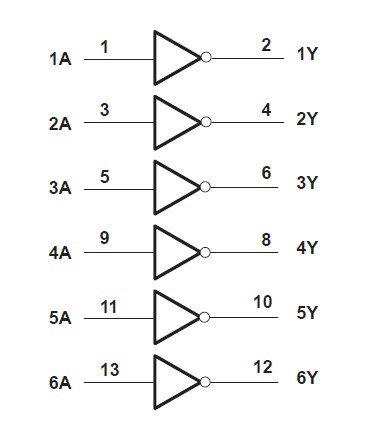

Diagrams
