Product Summary
The TMP91FU62FG is a high-performance 16-bit CPU.
Parametrics
TMP91FU62FG absolute maximum ratings: (1)Supply voltage VCC: -0.5 to 6.0 V; (2)Input voltage VIN: -0.5 to VCC + 0.5 V; (3)Output current (Per pin)IOL1 P5, P6, P96, P97: 2 mA; (4)Output current (Per pin)IOL2 P1, P3, P4, P7, P8, P90-P95, PA, PB: 5 mA; (5)Output current (Per pin)IOL3 P0: 30 mA; (6)Output current (Per pin)IOH1 P5, P6, P96, P97: -2 mA; (7)Output current (Per pin)IOH2 P1, P3, P4, P7, P8, P90-P95, PA, PB: -5 mA; (8)Output current (Per pin)IOH3 P0: -30 mA; (9)Output current (Total)Σ IOL P1, P3, P4, P5, P6, P7, P8, P9, PA, PB: 80 mA; (10)Output current (Total)Σ IOH P1, P3, P4, P5, P6, P7, P8, P9, PA, PB: -80 mA; (11)Output current (High current port Total)Σ IOL3 P0: 120 mA; (12)Output current (High current port Total)Σ IOH3 P0: -120 mA; (13)Power dissipation (TOPR = 85°C)PD: 600 mW; (14)Soldering temperature (10 s)TSOLDER: 260 °C; (15)Storage temperature TSTG: -65 to 150 °C; (16)Operating temperature TOPR: -40 to 85 °C.
Features
TMP91FU62FG features: (1)High-speed 16-bit CPU (900/L1 CPU); (2)Minimum instruction execution time:200ns (at 20MHz); (3)Built-in memory; (4)8-bit timers: 4 channels; (5)16-bit timers: 4 channels; (6)General-purpose serial interface: 4 channels; (7)10-bit AD converter (Built-in Sample hold circuit): 16 channels; (8)Special timer for CLOCK; (9)Watchdog timer; (10)Program patch logic: 6 banks.

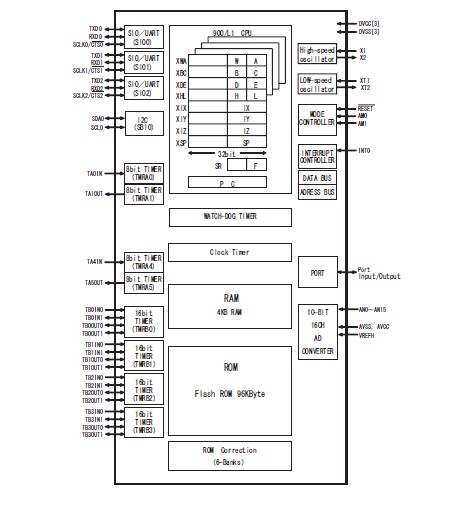

Diagrams
