Product Summary

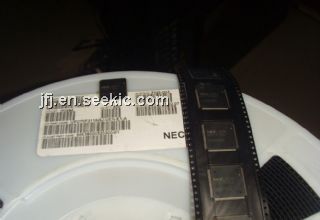

The UPD70F3116GJ-UEN-E1-A is a 32-bit single-chip microcontroller that realizes high-precision inverter control of a motor due to high-speed operation. The UPD70F3116GJ-UEN-E1-A uses the V850E1 CPU of the V850 Series and has on-chip ROM, RAM, bus interface, DMA controller, a variety of timers including a 3-phase sine wave PWM timer for a motor, various serial interfaces including FCAN, and peripheral facilities such as A/D converters.
Parametrics
UPD70F3116GJ-UEN-E1-A absolute maximum ratings: (1)VDD3 VDD3 pin: -0.5 to +4.6 V; (2)VDD5 VDD5 pin: -0.5 to +7.0 V; (3)CVDD CVDD pin: -0.5 to +4.6 V; (4)CVSS CVSS pin: -0.5 to +0.5 V; (5)AVDD AVDD pin: -0.5 to VDD5 + 0.5Note 1 V; (6)AVSS AVSS pin: -0.5 to +0.5 V; (7)VI1 Other than X1 pin and pins for NBD: -0.5 to VDD5 + 0.5Note 1 V; (8)VI2 VPP pin, μPD70F3116: -0.5 to +8.5 V; (9)VI3 Pins for NBD: -0.5 to VDD3 + 0.5Note 1 V; (10)VI4 RESET pin (when VDD3 is supplied): -0.5 to +6.0 V; (11)Clock input voltage VK X1 pin: -0.5 to VDD3 + 1.0Note 1 V; (12)Per pin for TO000 to TO005 and TO010 to TO015 pins: 15 mA; (13)Per pin other than for TO000 to TO005 and TO010 to TO015 pins: 4.0 mA; (14)Output current, low IOL Total for all pins: 210 mA; (15)Output current, high IOH Per pin: -4.0 mA; (16)Total for all pins: -100 mA; (17)Operating ambient temperature TA: -40 to +110 °C; (18)Storage temperature Tstg: -65 to +150 °C.
Features
UPD70F3116GJ-UEN-E1-A features: (1)Signed multiplication (32 bits × 32 bits → 64 bits): 1 or 2 clocks; (2)Saturated operation instructions (with overflow/underflow detection function); (3)32-bit shift instruction: 1 clock; (4)Bit manipulation instructions; (5)Long/short format load/store instructions; (6)Signed load instructions; (7)256 MB linear address space (shared by program and data); (8)Chip select output function: 8 spaces; (9)Memory block division function: 2, 4, or 8 MB/block; (10)Programmable wait function; (11)Idle state insertion function; (12)Signed multiplication (32 bits × 32 bits → 64 bits): 1 or 2 clocks; (13)Saturated operation instructions (with overflow/underflow detection function); (14)32-bit shift instruction: 1 clock; (15)Bit manipulation instructions; (16)Long/short format load/store instructions; (17)Signed load instructions.
Diagrams
