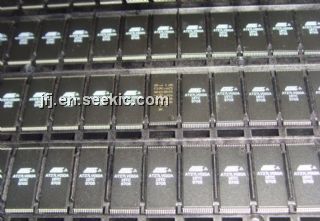

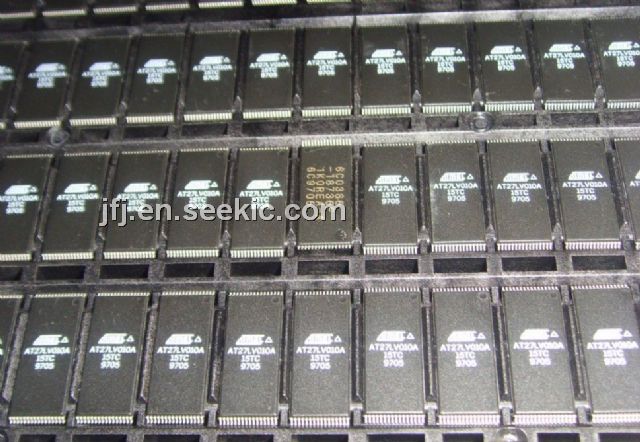

AT27LV010A-15TC

EPROM, 5MHz, 5V, TSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.65~0.65 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 15690 :	0.65 / Piece

PartNumber:: AT27LV010A-15TC

Brand:: ATMEL Corporation - Atmel | Pack: TSOP | D/C: 97+

Availability:: Supply Ability: 0/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Helen Li's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-16

From Other Seller

Part Number:AT27LV010A-15TC
US $0.65 - 0.65
Quantity:

piece

Product Summary

AT27LV010A-15TC is a high performance, low power, low voltage 1,048,576 bit one-time programmable read only memory (OTP EPROM) organized as 128K by 8 bits. The AT27LV010A-15TC requires only one supply in the range of 3.0V to 3.6V in normal read mode operation, making the AT27LV010A-15TC ideal for fast, portable systems using battery power. With a typical power dissipation of only 18mW at 5MHz and Vcc=3.3V, the AT27LV010A-15TC consumes less than one fifth the power of a standard 5V EPROM.

Parametrics

AT27LV010A-15TC absolute maximum ratings: (1) Temperature Under Bias: -40 to +85°C; (2) Storage Temperature: -65 to +125°C; (3) Voltage on Any Pin with Respect to Ground: -2 to +7V; (4) Voltage on A9 with Respect to Ground: -2 to +14V; (5) VPP Supply Voltage with Respect to Ground: -2 to +14V.

Features

AT27LV010A-15TC features: (1) Fast Read Access Time - 90ns; (2)Dual Voltage Range Operation; (3) Compatible with JEDEC Standard AT27C010; (4) Low Power CMOS Operation; (5) JEDEC Standard Packages; (6) High Reliability CMOS Technology; (7) Rapid Programming Algorithm - 100μs/byte (typical) ; (8) CMOS and TTL Compatible Inputs and Outputs JEDEC Standard for LVTTL; (9) Integrated Product Identification Code; (10) Commercial and Industrial Temperature Ranges.
