Product Summary
AT29LV010A-15JC is a 3-volt-only in-system Flash programmable and erasable read only memory (Flash) . 1 megabit of memory of the is organized as 131,072 bytes by 8 bits. The AT29LV010A-15JC offers access times to 150 ns with power dissipation of just 54 mW over the commercial temperature range. The AT29LV010A-15JC endurance is such that any sector can typically be written to in excess of 10,000 times.
Parametrics
AT29LV010A-15JC absolute maximum ratings: (1) Temperature Under Bias: -55 to +125°C; (2) Storage Temperature: -65 to +150°C; (3) All Input Voltages (including NC Pins) with Respect to Ground: -0.6 to +6.25V; (4) All Output Voltages with Respect to Ground: -0.6 to Vcc +0.6V; (5) Voltage on A9 (including NC Pins) with Respect to Ground: -0.6 to 13.5V.
Features
AT29LV010A-15JC features: (1) Single Supply Voltage, Range 3V to 3.6V; (2) 3-Volt-Only Read and Write Operation; (3) Software Protected Programming; (4) Fast Read Access Time - 150ns; (5) Low Power Dissipation; (6) Sector Program Operation; (7) Two 8 KB Boot Blocks with Lockout; (8) Fast Sector Program Cycle Time - 20ms; (9) Internal Program Control and Timer; (10) Commercial and Industrial Temperature Ranges.

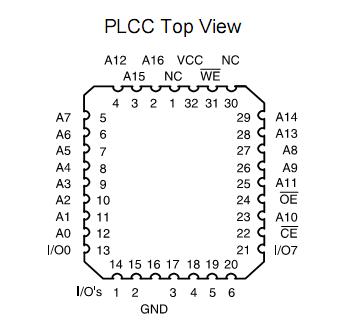

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|

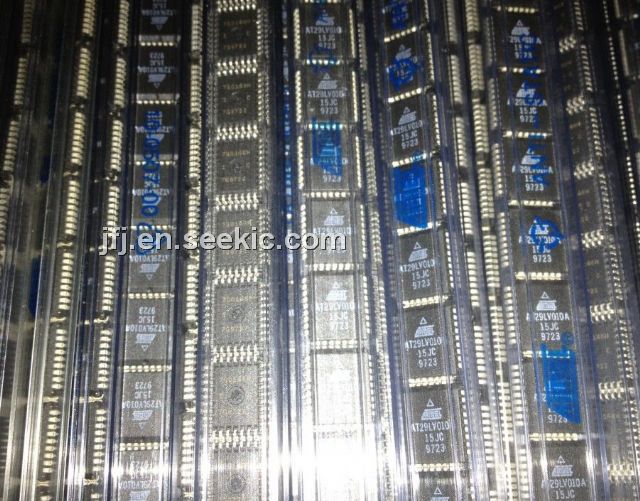

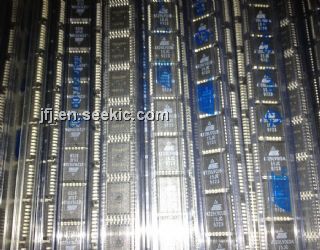

AT29LV010A-15JC |
Atmel |
Flash 1M(128Kx8) 3.3V- 150NS COM TEMP |
Data Sheet |
Negotiable |
|
|||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
AT29BV010A |
Other |
Data Sheet |
Negotiable |
|
||||||
AT29BV010A-12JC |
Atmel |
Flash 1M (128K X 8) 2.7V- 120NS COM TEMP |
Data Sheet |
Negotiable |
|
|||||
AT29BV010A-12JI |
Atmel |
Flash 1M (128K X 8) 2.7V- 120NS IND TEMP |
Data Sheet |
Negotiable |
|
|||||
AT29BV010A-12JU |
Atmel |
Flash 1M(128Kx8) 2.7V - 120NS IND TEMP |
Data Sheet |
Negotiable |
|
|||||
AT29BV010A-12TC |
Atmel |
Flash 1M (128K X 8) 2.7V- 120NS COM TEMP |
Data Sheet |
Negotiable |
|
|||||
AT29BV010A-12TI |
Atmel |
Flash 1M (128K X 8) 2.7V- 120NS IND TEMP |
Data Sheet |
Negotiable |
|
