Product Summary

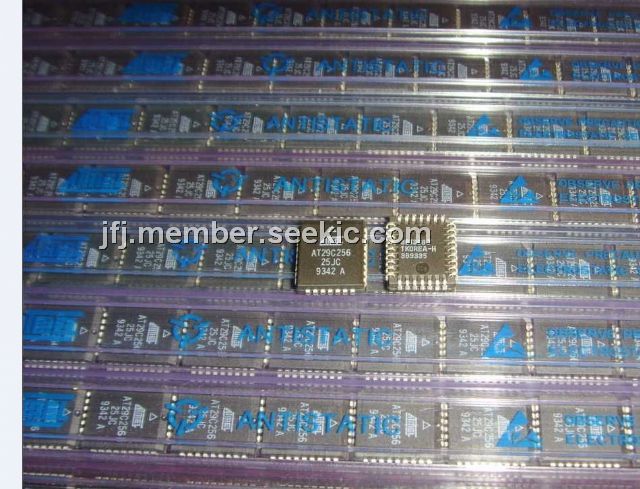

The AT29C256-25JC is a five-volt-only in-system Flash programmable and erasable read only memory (PEROM). Its 256K of memory of the AT29C256-25JC is organized as 32,768 words by 8 bits. Manufactured with Atmel advanced nonvolatile CMOS technology, the AT29C256-25JC offers access times to 70 ns with power dissipation of just 275 mW. When the device is deselected, the CMOS standby current is less than 300 μA. The AT29C256-25JC endurance is such that any sector can typically be written to in excess of 10,000 times.

Parametrics

AT29C256-25JC absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (3)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (4)Voltage on OE with Respect to Ground: -0.6V to +13.5V.

Features

AT29C256-25JC features: (1)Fast Read Access Time 70 ns; (2)5-volt Only Reprogramming; (3)Page Program Operation; (4)Single Cycle Reprogram (Erase and Program); (5)Internal Address and Data Latches for 64 Bytes. Internal Program Control and Timer. Hardware and Software Data Protection; (6)Typical Endurance > 10,000 Cycles; (7)Single 5V ±10% Supply; (8)CMOS and TTL Compatible Inputs and Outputs; (9)Commercial and Industrial Temperature Ranges.

Diagrams

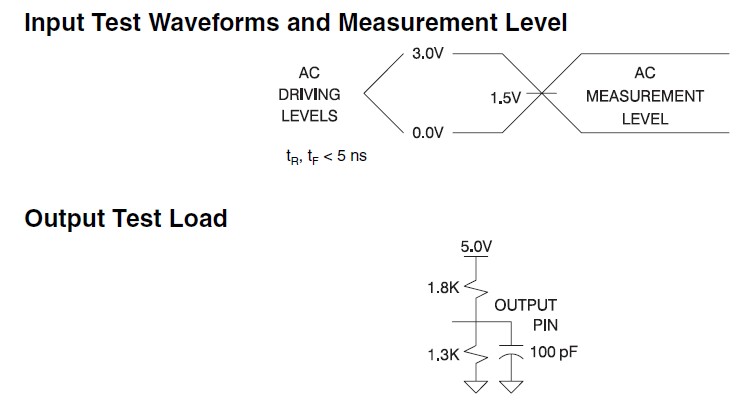

AT29C256-25JC Output Test Input Test
