Product Summary

The ST10F269Z2Q3 is a 16-bit MCU with mac unit, 128K to 256K byte flash memory and 12k byte RAM. The ST10F269Z2Q3 is a derivative of the STMicroelectronics ST10 family of 16-bit single-chip CMOS microcontrollers. It combines high CPU performance (up to 20 million instructions per second) with high peripheral functionality and enhanced I/O-capabilities. The ST10F269Z2Q3 also provides on-chip high-speed single voltage Flash memory, on-chip high-speed RAM, and clock generation via PLL.

Parametrics

ST10F269Z2Q3 absolute maximum ratings: (1)VDD Voltage on VDD pins with respect to ground: -0.5, +6.5 V; (2)VIO Voltage on any pin with respect to ground: -0.5, (VDD +0.5) V; (3)VAREF Voltage on VAREF pin with respect to ground: -0.3, (VDD +0.3) V; (4)IOV Input Current on any pin during overload condition: -10, +10 mA; (5)ITOV Absolute Sum of all input currents during overload condition: |100| mA; (6)Ptot Power Dissipation: 1.5 W; (7)TA Ambient Temperature under bias: -40, +125 ℃; (8)Tstg Storage Temperature: -65, +150 ℃.

Features

ST10F269Z2Q3 features: (1)High performance 32 or 40 mhz cpu with dsp function; (2)Memory organization; (3)Fast and flexible bus; (4)Two 16-channel capture / compare units; (5)4-channel PWM unit.

Diagrams

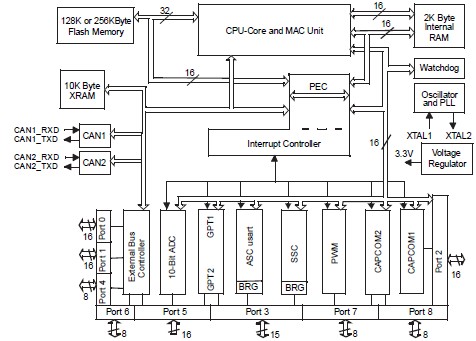

ST10F269Z2Q3 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ST10F269Z2Q3
ST10F269Z2Q3

STMicroelectronics

16-bit Microcontrollers (MCU) 256K Flash 12K RAM

Data Sheet

0-1: $15.64
1-10: $15.53
10-100: $15.47
100-250: $15.35
