Product Summary

The HC55185GCR is a ringing subscriber line interface circuit (RSLIC). The device supports analog Plain Old Telephone Service (POTS) in short and medium loop length, wireless and wireline applications. Ideally suited for remote subscriber units, the HC55185GCR offers flexibility to designers with high ringing voltage and low power consumption system requirements. The applications of the HC55185GCR include Voice Over Internet Protocol (VoIP), Cable Modems, Voice Over DSL (VoDSL), Short Loop Access Platforms, Remote Subscriber Units and Terminal Adapters.

Parametrics

HC55185GCR absolute maximum ratings: (1)Maximum Supply Voltages, VCC: -0.5V to +7V; VCC - VBH: 110V; (2)Uncommitted Switch Voltage: -110V; (3)Maximum Tip/Ring Negative Voltage Pulse: VBH -15V; (4)Maximum Tip/Ring Positive Voltage Pulse: +8V; (5)ESD (Human Body Model): 500V.

Features

HC55185GCR features: 1)Onboard Ringing Generation; (2)Compatible with Existing HC5518x Devices; (3)Low Standby Power Consumption (75V, 65mW); (4)Reduced Idle Channel Noise; (5)Programmable Transient Current Limit; (6)Improved Off Hook Software Interface; (7)Integrated MTU DC Characteristics; (8)Low External Component Count; (9)Silent Polarity Reversal; (10)Pulse Metering and On Hook Transmission; (11)Tip Open Ground Start Operation; (12)Balanced and Unbalanced Ringing; (13)Thermal Shutdown with Alarm Indicator; (14)28 Lead Surface Mount Packaging; (15)Reduced Footprint Micro Leadframe Packaging; (16)Dielectric Isolated (DI) High Voltage Design; (17)QFN Package Option; (18)Pb-free plus anneal available (RoHS compliant).

Diagrams

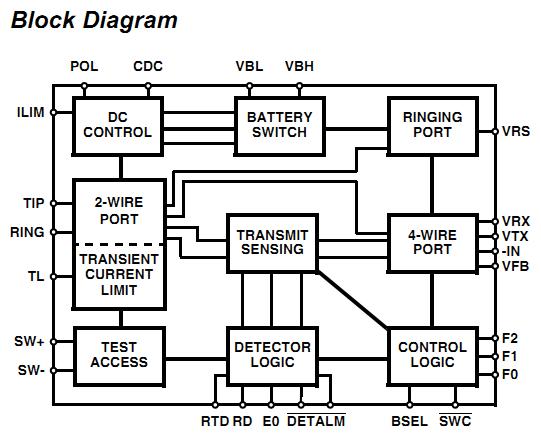

HC55185GCR block diagram
