Product Summary

The BTS716GB is a Smart High-Side Power Switch. The applications of it are uC compatible high-side power switch with diagnostic feedback for 12V and 24V grounded loads, all types of resistive, inductive and capacitve loads, most suitable for loads with high inrush currents, so as lamps, replaces electromechanical relays, fuses and discrete circuits. The BTS716GB provides embedded protective functions.

Parametrics

BTS716GB absolute maximum ratings: (1)supply voltage:43V; (2)load current: self-limited; (3)load dump protection:60V; (4)operating temperature range:-40℃ to +150℃; (5)storage temperature range:-55℃ to +150℃; (6)power dissipation:3.6W or 1.9W; (7)electrostatic discharge capability: IN:1.0kV, ST:4.0kV, out to all other pins shorted:8.0kV.

Features

BTS716GB features: (1)very low standby current; (2)CMOS compatible input; (3)improved electromagnetic compatibility; (4)fast demagnetization of inductive loads; (5)stable behaviour at undervoltage; (6)wide operating voltage range; (7)logic ground independent from load output; (8)short circuit protection; (9)overload protection; (10)current limitation; (11)thermal shutdown; (12)overvoltage protection with external resistor; (13)reverse battery protection with external resistor; (14)loss of ground and loss of Vbb protection; (15)electrostatic discharge protection; (16)diagnostic feedback with open drain output; (17)open load detection in OFF-state; (18)feedback of thermal shutdown in ON-state.

Diagrams

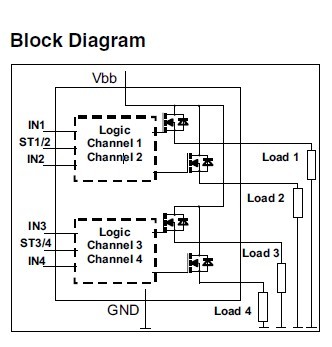

BTS716GB Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

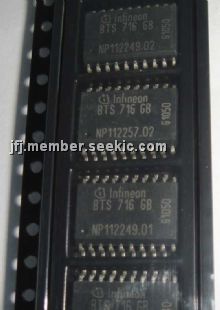

BTS716GB
BTS716GB

Infineon Technologies

Power Switch ICs - POE / LAN SMART HI SIDE PWR SWITCH INDUSTRY APP

Data Sheet

0-490: $2.02
490-500: $1.64
500-1000: $1.38
1000-2000: $1.31
