Product Summary

The ISP752R is a N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS technology. The ISP752R can provide embedded protective functions. The applications of the ISP752R include All types of resistive, inductive and capacitive loads, μC compatible power switch for 12 V, 24 V and 42 V DC industrial applications and Replaces electromechanical relays and discrete circuits.

Parametrics

ISP752R absolute maximum ratings: (1)Supply voltage, Vbb: 52 V; (2)Supply voltage for full short circuit protection, Vbb(SC): 50V; (3)Continuous input voltage, VIN: -10 to +16V; (4)Load current (Short - circuit current), IL: self limited; (5)Current through input pin (DC), IIN: ± 5 mA; (6)Junction temperature, Tj: 150℃; (7)Operating temperature, Ta: -30 to +85℃; (8)Storage temperature, Tstg: -40to +105℃; (9)Power dissipation, Ptot: 1.5 W; (10)Inductive load switch-off energy dissipation single pulse, Tj =150℃, IL = 1 A, EAS: 125 mJ; (11)Load dump protection VLoadDump= VA + VS, RI=2Ω, td=400ms, VIN= low or high, VA=13,5V, Vloaddump: 73.5V when RL = 13.5Ω; 83.5V when RL = 27Ω.

Features

ISP752R features: (1)Overload protection; (2)Current limitation; (3)Short circuit protection; (4)Thermal shutdown with restart; (5)ESD - Protection; (6)Overvoltage protection (including load dump); (7)Fast demagnetization of inductive loads; (8)Reverse battery protection with external resistor; (9)Open drain diagnostic output for overtemperature and short circuit; (10)Open load detection in OFF - State with external resistor; (11)CMOS compatible input; (12)Loss of GND and loss of Vbb protection; (13)Very low standby current.

Diagrams

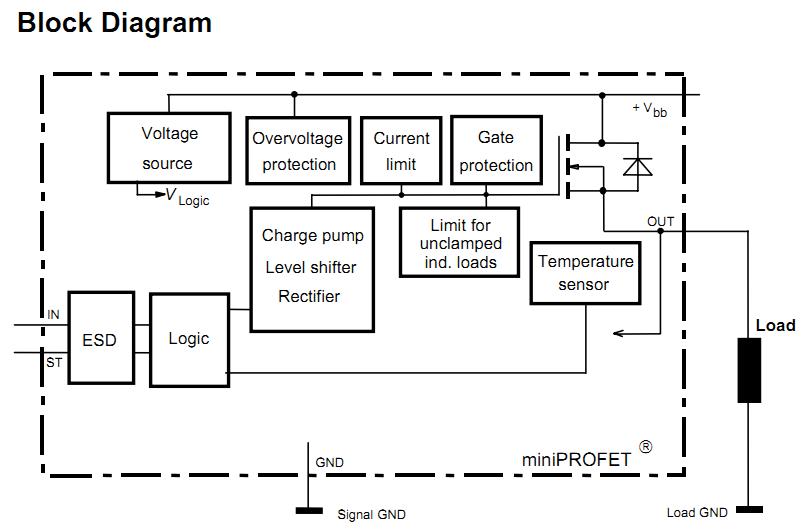

ISP752R block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

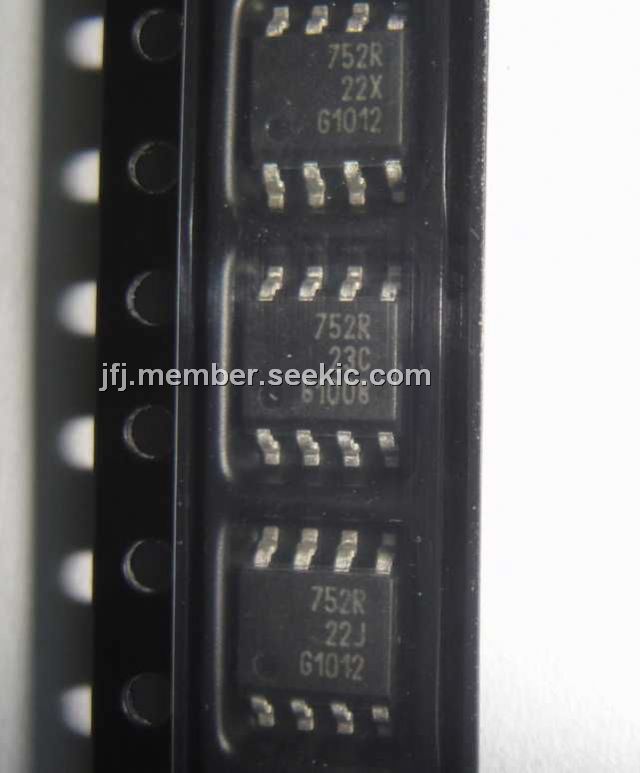

ISP752R
