Product Summary

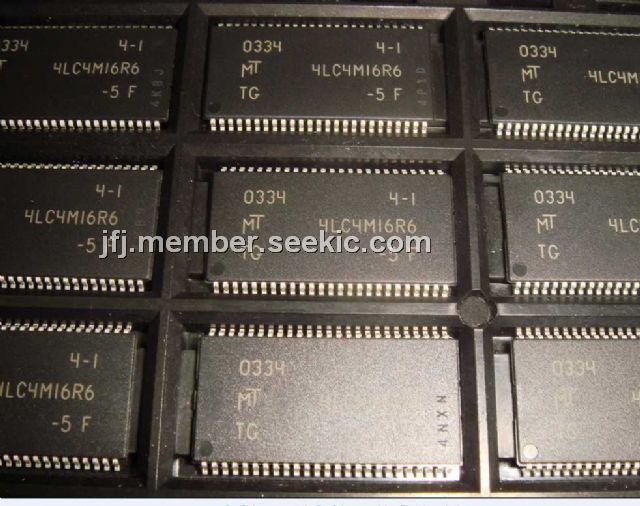

The MT4LC4M16R6TG-5F is a 4 Meg x 16 DRAM, high-speed CMOS, dynamic random-access memory device. It contains 67,108,864 bits. The MT4LC4M16R6TG-5F is designed to operate from 3V to 3.6V. The MT4LC4M16R6TG-5F is functionally organized as 4,194,304 ocations containing 16 bits each.
Parametrics
MT4LC4M16R6TG-5F absolute maximum ratings: (1)Voltage on VCC Relative to VSS: -1V to +4.6V; (2)Voltage on NC, Inputs or I/O Pins Relative to VSS: -1V to +4.6V; (3)Operating Temperature, TA (ambient), Commercial: 0℃ to +70℃; Extended (IT): -40℃ to +85℃; (4)Storage Temperature (plastic): -55℃ to +150℃; (5)Power Dissipation: 1W.
Features
MT4LC4M16R6TG-5F features: (1)Single +3.3V ±0.3V power supply; (2)Industry-standard x16 pinout, timing, functions, and package; (3)12 row, 10 column addresses (R6) 13 row, 9 column addresses (N3); (4)High-performance CMOS silicon-gate process; (5)All inputs, outputs and clocks are LVTTL-compatible; (6)Extended Data-Out (EDO) PAGE MODE access; (7)4,096-cycle CAS#-BEFORE-RAS# (CBR) REFRESH distributed across 64ms; (8)Optional self refresh (S) for low-power data retention.

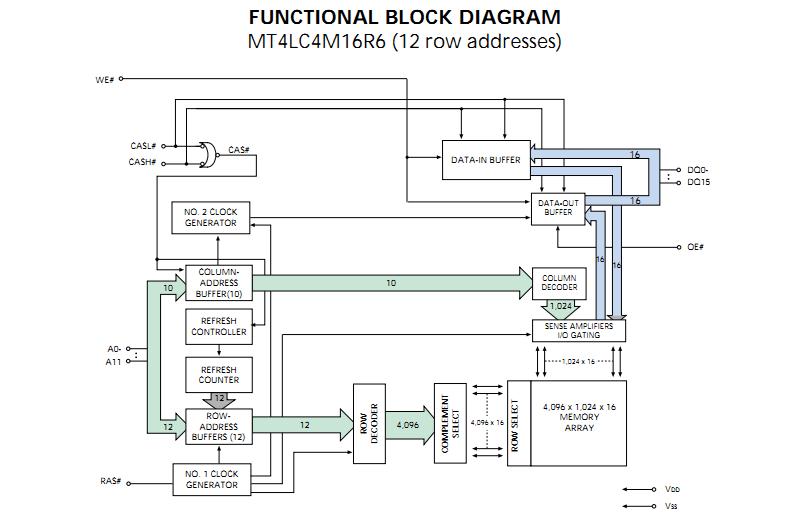

Diagrams
 |
