Product Summary

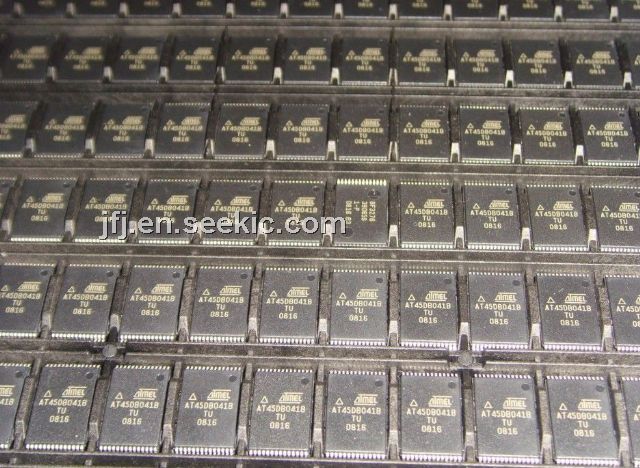

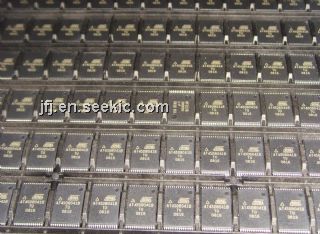

The AT45DB041B-TU is an SPI compatible serial interface Flash memory ideally suited for awide variety of digital voice-, image-, program code- and data-storage applications. 4,325,376 bits of memory of the AT45DB041B-TU are organized as 2048 pages of 264 bytes each. naddition to the main memory, the AT45DB041B-TU also contains two SRAM data buffers of 264 bytes each.
Parametrics
AT45DB041B-TU absolute maximum ratings: (1) Temperature under Bias: -55 to +125°C; (2) Storage Temperature: -65 to +`125°C; (3) All Input Voltages (including NC Pins) with Respect to Ground: -0.6 to +6.25V; (4) All Output Voltages with Respect to Ground: -0.6 to Vcc +0.6V.
Features
AT45DB041B-TU features: (1) Single 2.5V - 3.6V or 2.7V - 3.6V Supply; (2) Serial Peripheral Interface (SPI) Compatible; (3) 20 MHz Max Clock Frequency; (4) Page Program Operation; (5) Supports Page and Block Erase Operations; (6) Two 264-byte SRAM Data Buffers ¨C Allows Receiving of Data while Reprogramming the Flash Memory Array; (7) Continuous Read Capability through Entire Array; (8) Hardware Data Protection Feature; (9) Commercial and Industrial Temperature Ranges; (10) Green (Pb/Halide-free/RoHS Compliant) Package Options.

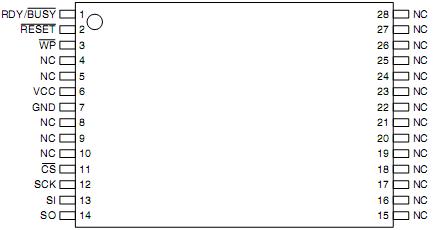

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT45DB041B-TU |
|
IC FLASH 4MBIT 20MHZ 28TSOP |
Data Sheet |
Negotiable |
|
||||||||||||
