Product Summary
The CXA2134Q-T6 is an IC designed as a decoder for the Zenith TV Multi-channel System and also corresponds with I2C bus. Functions include stereo demodulation, SAP (Separate Audio Program) demodulation, dbx noise reduction and sound processor. Various kinds of filters are built in the CXA2134Q-T6. Applications of the CXA2134Q-T6include: TV, VCR and other decoding systems for US audio multiplexing TV broadcasting.
Parametrics
CXA2134Q-T6 absolute maximum ratings: (1) Supply voltage Vcc: 11V; (2) Operating temperature TOPR: -20 to +75°C; (3) Storage temperature Tstg: -65 to +150°C; (4) Allowable power dissipation: 0.6W.
Features
CXA2134Q-T6 features: (1) Alignment-free VCO and filter; (2) Audio multiplexing decoder
dbx noise reduction decoder; (3) sound processor; (4) Input level, separation adjustments and each mode control are possible through I2C bus.

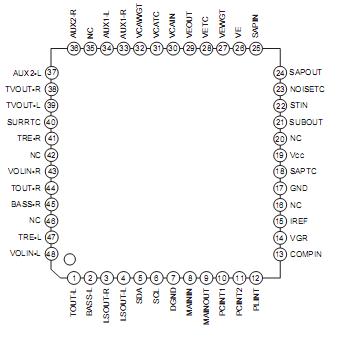

Diagrams
