Product Summary

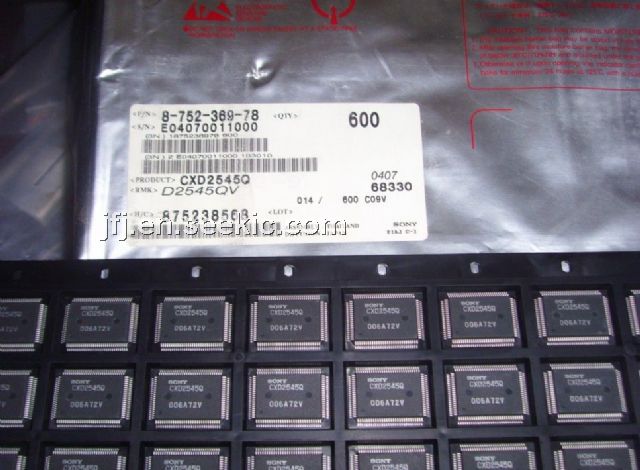

The CXD2545Q is a digital signal processor IC with a built-in digital servo for CD players. The CXD2545Q is broadly divided into a digital signal processor block and these blocks possess the following functions.
Parametrics
CXD2545Q absolute maximum ratings: (1) supply voltage VDD: -0.3 to 7V; (2) Input Voltage VI: -0.3 to +7V (Vss -0.3V to VDD +0.3V); (3) Output votlage VO: -0.3 to +7V; (4) Storage temperature Tstg: -40 to +125°C; (5) Supply voltage difference Vss-AVss: -0.3 to +0.3V, VDD-AVDD: -0.3 to +0.3V.
Features
CXD2545Q features: (1) all digital signals produced during playback processed with a single-chip; (2) Allows highly intergrated chip mounting by incorporating the RAM and digital servo on-chip.
Diagrams
