Product Summary

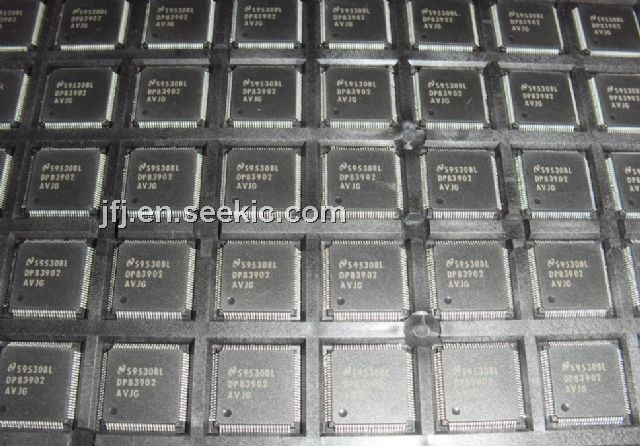

The DP83902AVJG Network Interface Controller for twisted Pair (ST-NIC) is a microCMOS VLSI device designed for easy implementation of CSMA/CD local area networks. The DP83902AVJG transceiver of the fully complies with the IEEE standard.
Parametrics
DP83902AVJG absolute maximum ratings: (1) Supply Voltage (Vcc) : -0.5 to +7.0V; (2) DC Input Voltage (VIN) : -0.5 to Vcc +0.5V; (3) DC Output Voltage (VOUT) : -0.5 V to Vcc +0.5V; (4) Storage Temperature Range (TSTG) : -65°C to +150°C; (5) Power Dissipation (PD) : 800mW; (6) Lead Temp: 260°C; (7) ESD Rating RZAP=1.5k, CZAP=100pF) : 1.5kV; (8) Clamp DiodeCurrent: ±20mA.
Features
DP83902AVJG features: (1) Single chip solution for IEEE802.3, 10BASE-T; (2) Intergrated controller, ENDEC, and transveiver; (3) Full AUI interface; (4) No external precision components required; (5) 3 levels of loopback supported.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 DP83902AVJG/NOPB |
|
IC CTRLR SER NETWORK IN 100LQFP |
Data Sheet |
Negotiable |
|
||||
