Product Summary

The AT89C51RD2-SLSUM is high performance CMOS Flash version of the 80C51 CMOS single chip 8-bit microcontroller. The AT89C51RD2-SLSUM contains a 64-Kbyte Flash memory block for code and for data. The 64-Kbytes Flash memory can be programmed either in parallel mode or in serial mode with the ISP capability or with software. The programming voltage is internally generated from the standard VCC pin. The AT89C51RD2-SLSUM retains all of the features of the Atmel 80C52 with 256 bytes of internal RAM, a 9-source 4-level interrupt controller and three timer/counters. In addition, the AT89C51RD2-SLSUM has a Programmable Counter Array, an XRAM of 1792 bytes, a Hardware Watchdog Timer, SPI interface, Keyboard, a more versatile serial channel that facilitates multiprocessor communication (EUART) and a speed improvement mechanism(X2 Mode).

Parametrics

AT89C51RD2-SLSUM absolute maximum ratings: (1)I = industrial: -40℃ to 85℃; (2)Storage Temperature: -65℃ to + 150℃; (3)Voltage on VCC to VSS: -0.5V to + 6.5V; (4)VVoltage on Any Pin to VSS: -0.5V to VCC+0.5V; (5)Power Dissipation:1W.

Features

AT89C51RD2-SLSUM features: (1)8051 Instruction Compatible; (2)Six 8-bit I/O Ports (64 Pins or 68 Pins Versions); (3)Four 8-bit I/O Ports (44 Pins Version); (4)Three 16-bit Timer/Counters; (5)256 Bytes Scratch Pad RAM; (6)9 Interrupt Sources with 4 Priority Levels; (7)Integrated Power Monitor (POR/PFD) to Supervise Internal Power Supply; (8)ISP (In-System Programming) Using Standard VCC Power Supply; (9)On-chip 2048 Bytes EEPROM Block for Data Storage ; (10)100K Write Cycles; (11)Dual Data Pointer; (12)Variable Length MOVX for Slow RAM/Peripherals; (13)Improved X2 Mode with Independent Selection for CPU and Each Peripheral; (14)Keyboard Interrupt Interface on Port 1; (15)SPI Interface (Master/Slave Mode); (16)8-bit Clock Prescaler.

Diagrams

AT89C51RD2-SLSUM block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

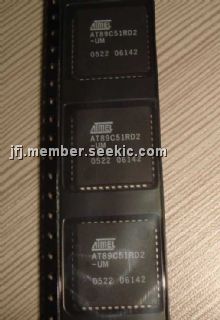

AT89C51RD2-SLSUM
AT89C51RD2-SLSUM

Atmel

8-bit Microcontrollers (MCU) 64kB Flash 2048B RAM 2.7V-5.5V

Data Sheet

0-1: $3.81
1-10: $3.65
10-25: $3.48
25-100: $3.02
