Product Summary

The GM5115 is a graphics processing IC for Liquid Crystal Display (LCD) monitors at XGA/SXGA resolution. The GM5115 provides all key IC functions required for image capture, processing and timing control for direct interface to the row and column drivers of the LCD panel.

Parametrics

GM5115 absolute maximum ratings: (1) 3.3V Supply Voltages VVDD_3.3: -0.3 to 3.6V; (2) 2.5V Supply Voltages VVDD_2.5: -0.3 to 2.75V; (3) Input Voltage (5V tolerant inputs) VIN5Vtok: -0.3 to 5.5V; (4) Input Voltage (non 5V tolerant inputs) VIN: -0.3 to 3.6V; (5) Electrostatic Discharge VESD: ±2.0kV; (6) Latch-up ILA: ±100mA; (7) Ambient Operating Temperature TA: 0 to 70°C; (8) Storage Temperature Tstg: -40 to 125°C; (9) Operating Junction Temp.Tj: 0 to 125°C; (10) Soldering Temperature (30 sec.) TSOL: 220°C; (11) Vapor Phase Soldering (30 sec.) TVAP: 220°C.

Features

GM5115 features: (1) Zoom (from VGA) and shrink (from UXGA) scaling; (2) Integrated 8-bit triple-channel ADC / PLL; (3) Integrated Ultra-Reliable DVI 1.0-compliant receiver; (4) High-Bandwidth Digital Content Protection (HDCP) ; (5) On-chip programmable OnPanel timing controller; (6) Embedded microcontroller with parallel ROM interface; (7) Programmable gamma correction (CLUT) ; (8) RealColor controls provide sRGB compliance; (9) PWM back light intensity control; (10) 5 Volt tolerant inputs; (11) Low EMI and power saving features.

Diagrams

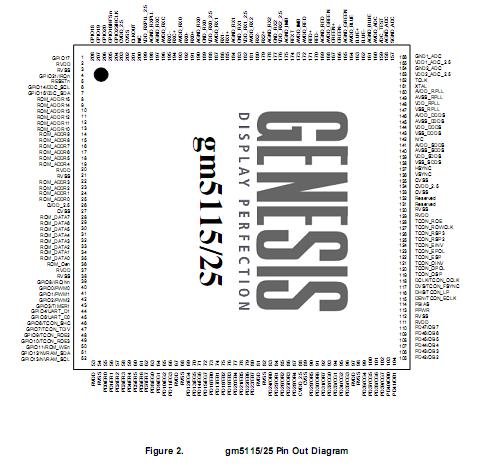

GM5115 Pin Out Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

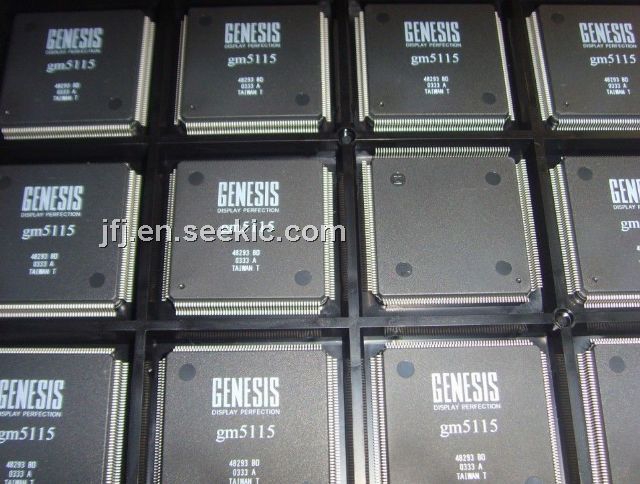

gm5115
gm5115
Other

Data Sheet
Negotiable

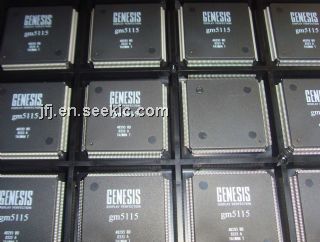

gm5115-H
gm5115-H
Other

Data Sheet
Negotiable
