S29GL512N11TFI02

3.0V single power flash memory, TSOP56, –0.5 V to +12.5 V, 200 mA, Advanced Sector Protection

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.90~5.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $4.90~5.20

PartNumber:: S29GL512N11TFI02

Brand:: SPANSION - spansion | Pack: TSOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Helen Li's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-16

From Other Seller

Part Number:S29GL512N11TFI02
US $4.90 - 5.20
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

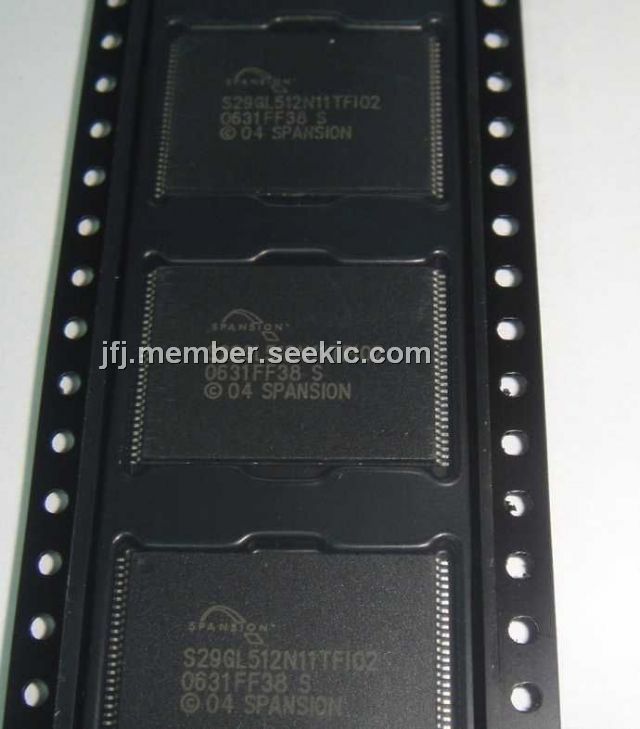

The S29GL512N11TFI02 is a 3.0V single power flash memory manufactured using 110 nm MirrorBit technology. The S29GL512N11TFI02 is a 512 Mbit, organized as 33,554,432 words or 67,108,864 bytes. The S29GL512N11TFI02 has a 16-bit wide data bus that can also function as an 8-bit wide data bus by using the BYTE# input. The device can be programmed either in the host system or in standard EPROM programmers.

Parametrics

S29GL512N11TFI02 absolute maximum ratings: (1)Storage Temperature, Plastic Packages: –65 to +150℃; (2)Ambient Temperature with Power Applied: –65 to +125℃; (3)Voltage with Respect to Ground: VCC:–0.5 V to +4.0 V; VIO: –0.5 V to +4.0 V; A9, OE#, and ACC: –0.5 V to +12.5 V; All other pins:–0.5 V to VCC + 0.5V; (4)Output Short Circuit Current: 200 mA.

Features

S29GL512N11TFI02 features: (1)Advanced Sector Protection; (2)WP#/ACC input accelerates programming time (when high voltage is applied) for greater throughput during system production. Protects first or last sector regardless of sector protection settings; (3)Hardware reset input (RESET#) resets device; (4)Ready/Busy# output (RY/BY#) detects program or erase cycle completion.
