Product Summary

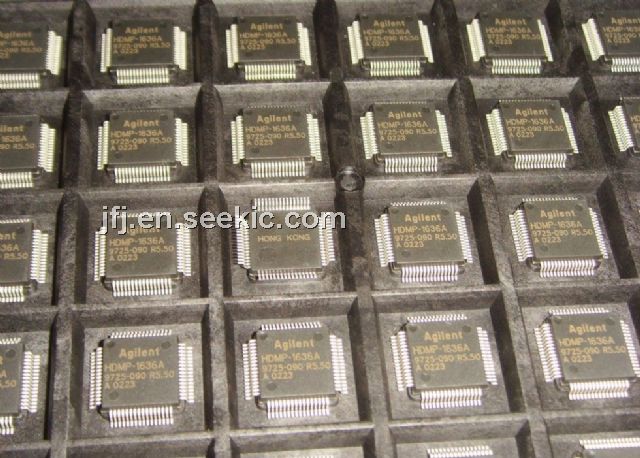

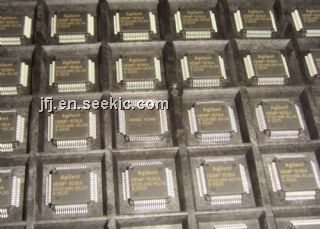

The HDMP-1636A transceiver is a single integrated ircuit packaged in a plastic QFP package. The HDMP-1636A provides a low-cost, low-power physical layer solution r 1250 MBd Gigabit Ethernet, 062.5 MBd Fibre Channel, and proprietary link interfaces. The HDMP-1636A is used to build a high speed interface (as shown in Figure 1) while minimizing board space, power and cost. Applications of the HDMP-1636A include: 1250 MBd Gigabit Ethernet Interface, 1062.5 MBd Fibre Channel Interface, Mass Storage System I/O Channel, Backplane Serialization, FC Interface for Disk Drives and Arrays.
Parametrics
HDMP-1636A absolute maximum ratings: (1) Supply Voltage Vcc: -0.5 to 5.0V; (2) TTL Input Voltagem VIN, TTL: -0.7 t0 Vcc +2.8V; (3) HS_IN Input Voltage VIN, HS_IN: 2.0V; (4) TTL Output Source Current IO, TTL: 13mA; (5) Storage Temperature Tstg: -65 to +150°C; (6) Junction Operating Temperature Tj: 0 to +150°C.
Features
HDMP-1636A features: (1) IEEE 802.3z Gigabit Ethernet Compatible; (2) ANSI x3.230-1994 Fibre Channel Compatible (FC-O) ; (3) Supports Serial Data Rates of 1062.5 MBd (Fibre Channel) & 1250 MBd (Gigabit Ethernet) ; (4) Low Power Consumption, 630mW Typical; (5) Transmitter and Receiver Functions Incorporated onto a Single IC; (6) 10-Bit Wide Parallel TTL Compatible I/Os; (7) Single +3.3 V Power Supply; (8) 2 kV ESD Protection on All Pins.

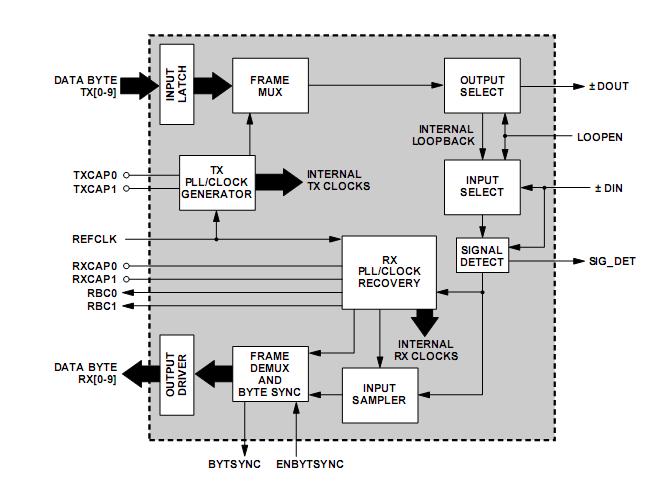

Diagrams
