Product Summary

The KFG1G16U2C-AIB6 is an advanced generation, high-performance NAND-based Flash memory. It integrates on-chip a single-level-cell (SLC) NAND Flash Array memory with two independent data buffers, boot RAM buffer, a page buffer for the Flash array, and a one-time-programmable block. The combination of these memory areas enable high-speed pipelining of reads from host, BufferRAM, Page Buffer, and NAND Flash Array. Clock speeds up to 66MHz with a x16 wide I/O yields a 108MByte/second bandwidth. The KFG1G16U2C-AIB6 also includes a Boot RAM and boot loader. This enables the device to efficiently load boot code at device startup from the NAND Array without the need for off-chip boot device.

Parametrics

KFG1G16U2C-AIB6 absolute maximum ratings: (1)Voltage on any pin relative to VSS, Vcc Vcc: -0.5 to + 4.6V; (2)All Pins VIN: -0.5 to + 4.6V; (3)Temperature Under Bias Industrial Tbias: -40 to +125 ℃; (4)Storage Temperature Tstg: -65 to +150 ℃; (5)Short Circuit Output Current IOS: 5 mA; (6)Recommended Operating Temperature TA (Industrial Temp.): -40 to +85 ℃.

Features

KFG1G16U2C-AIB6 features: (1)A BootRAM and bootloader; (2)Two independent bi-directional 2KB DataRAM buffers; (3)A High-Speed x16 Host Interface; (4)On-chip Error Correction; (5)On-chip NOR interface controller.

Diagrams

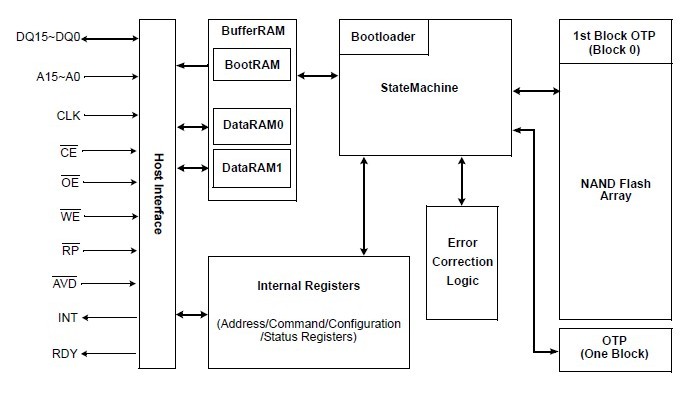

KFG1G16U2C-AIB6 block diagram
