Product Summary
The KM681000BLGI-7L is a 128K x8 bit low power CMOS static RAM. The KM681000BLGI-7L is fabricated by SAMSUNGs advanced CMOS process technology. It can support various operating temperature ranges and have various package types for user flexibility of system design. The KM681000BLGI-7L also support low data retention voltage for battery back-up operation with low data retention current.
Parametrics
KM681000BLGI-7L absolute maximum ratings: (1)Voltage on any pin relative to Vss VIN,VOUT: -0.5 to 7.0 V; (2)Voltage on Vcc supply relative to Vss VCC: -0.5 to 7.0 V; (3)Power Dissipation PD: 1.0 W; (4)Storage temperature TSTG: -65 to 150 ℃; (5)Operating Temperature TA: 0 to 70 ℃ KM681000BL/L-L; (6)Soldering temperature and time TSOLDER: 260℃.
Features
KM681000BLGI-7L features: (1)Process Technology : 0.6 CMOS; (2)Organization : 128Kx8; (3)Power Supply Voltage : Single 5.0V 10%; (4)Low Data Retention Voltage : 2V(Min); (5)Three state output and TTL Compatible; (6)Package Type : JEDEC Standard 32-DIP, 32-SOP, 32-TSOP I R/F.

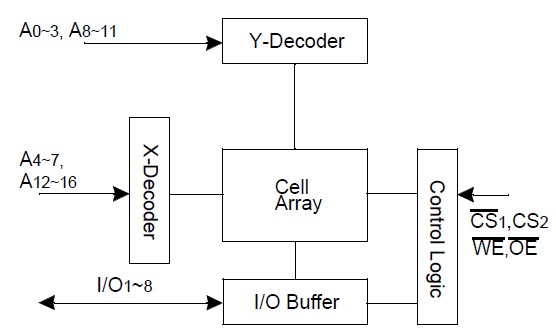

Diagrams
 |
