Product Summary
The LPC47N217N-ABZJ-TR is a 3.3V PC 99, PC2001, and ACPI 2.0 compliant Super I/O Controller. The LPC47N217N-ABZJ-TR implements the LPC interface, a pin reduced ISA interface which provides the same or better performance as the ISA/X-bus with a substantial savings in pins used. The LPC47N217N-ABZJ-TR offers a full 16-bit internally decoded address bus, a Serial IRQ interface with PCI CLKRUN# support, relocatable configuration ports, and three DMA channel options.
Features
LPC47N217N-ABZJ-TR features: (1) 3.3 Volt Operation (5V tolerant) ; (2) ogrammable Wakeup Event Interface (IO_PME# Pin) ; (3) SMI Support (IO_SMI# Pin) ; (4) Two IRQ Input Pins; (5) ACPI 2.0 Compliant; (6) Intelligent Auto Power Management; (7) Multi-Mode Parallel Port with ChiProtect; (8) LPC Bus Host Interface.

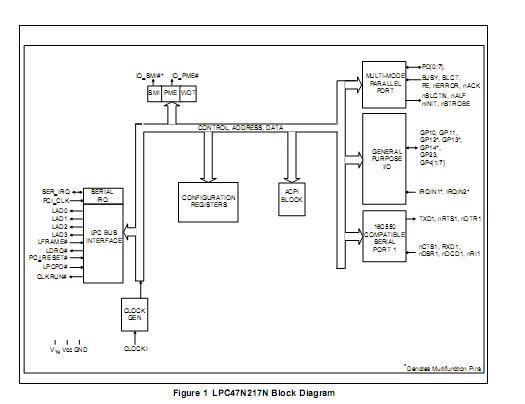

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LPC47N217N-ABZJ-TR |
SMSC |
Interface - Specialized 56 Pin Super I/O LPC Interface |
Data Sheet |
|
|
||||||||||||
