Product Summary

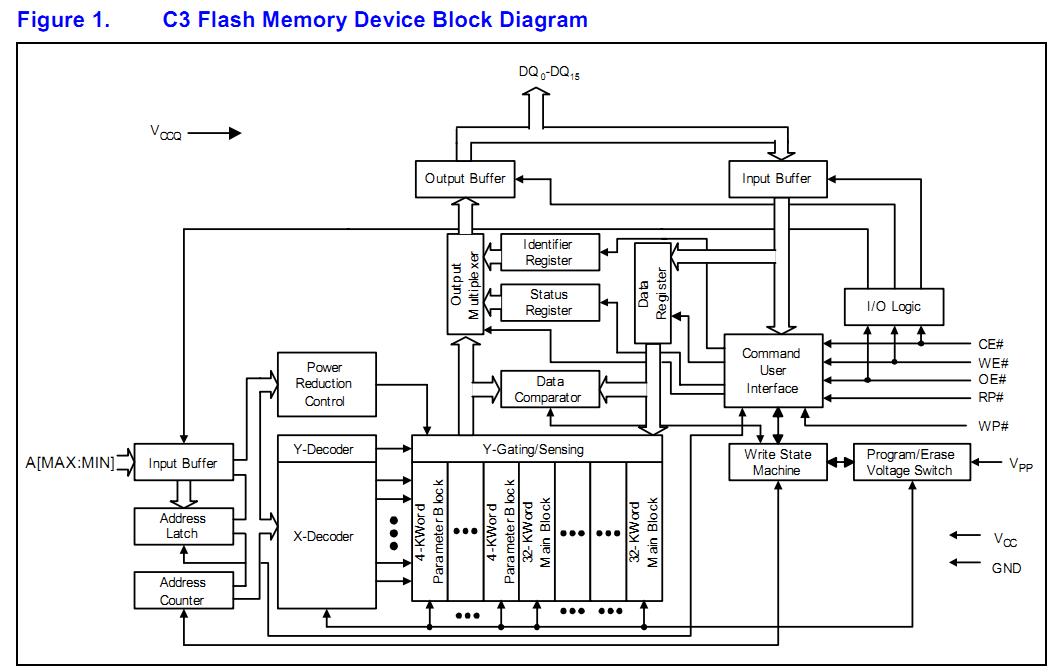

The JS28F160C3BD70 is an Advanced+ Book Block Flash Memory (C3) device. The JS28F160C3BD70 incorporates low-voltage capability (3 V read, program, and erase) with high-speed, low-power operation. Flexible block locking allows any block to be independently locked or unlocked.

Parametrics

JS28F160C3BD70 absolute maximum ratings: (1)Extended Operating Temperature During Read: –40 to +85℃; (2)During Block Erase and Program: –40 to +85℃; (3)Temperature under Bias: –40 to +85℃; (4)Storage Temperature: –65 to +125℃; (5)Voltage On Any Pin (except VCC and VPP) with Respect to GND: –0.5 V to +3.7 V; (6)VPP Voltage (for Block Erase and Program) with Respect to GND: –0.5 V to +13.5 V; (7)VCC and VCCQ Supply Voltage with Respect to GND: –0.2 V to +3.6 V; (8)Output Short Circuit Current: 100 mA.

Features

JS28F160C3BD70 features: (1)Flexible SmartVoltage Technology: 2.7 V– 3.6V read/program/erase; 12 V for fast production programming; (2)1.65 V to 2.5 V or 2.7 V to 3.6 V I/O Option: Reduces overall system power; (3)High Performance: 2.7 V– 3.6 V: 70 ns max access time; (4)Optimized Architecture for Code Plus Data Storage: Eight 4 Kword blocks, top or bottom parameter boot; Up to 127 x 32 Kword blocks; Fast program suspend capability; Fast erase suspend capability; (5)Flexible Block Locking: Lock/unlock any block; Full protection on power-up; Write Protect pin for hardware ; (6)block protection; (7)Low Power Consumption: 9 mA typical read; 7 uA typical standby with Automatic Power Savings feature; (8)Extended Temperature Operation: -40 to +85℃.
