Product Summary

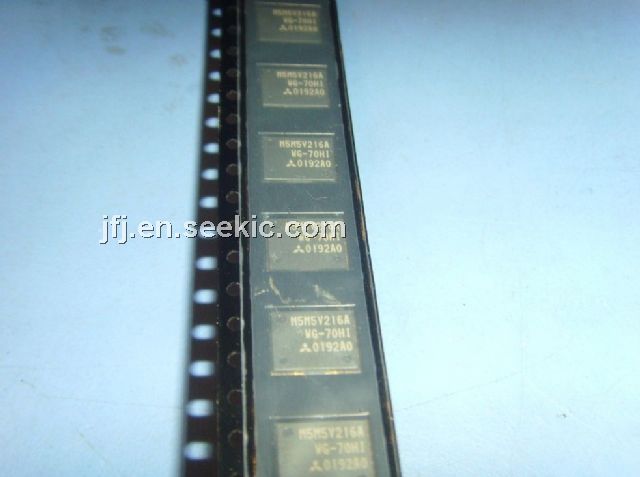

The M5M5V216AWG-70HI is a family of low voltage 2-Mbit static RAM organized as 131,072-words by 16-bit, fabricated by Mitsubishi high-performance 0.25μm CMOS technology. The M5M5V216AWG-70HI is suitable for memory applications where a simple interfacing, battery operating and battery backup are the important design objectives. The M5M5V216AWG-70HI is packaged in a CSP (chip scale package) , with the outline of 7.0mm x 8.5mm, ball matrix of 6 x 8 (48 pin) and ball pitch of 0.75mm.
Parametrics
M5M5V216AWG-70HI absolute maximum ratings: (1) Supply voltage Vcc: -0.5V to +4.6V; (2) Input Voltage: -0.5 to Vcc +0.5V; (3) Output voltage Vo: 0 to Vcc; (4) Power Disspation: 700mW; (5) Operating temperature: 0 to 70°C (Standard (-L, -H) ) , -40 to +85°C (W-version (-LW, -HW) ) , -40 to +85°C (I-version (-LI, -HI) ) ; (6) Storage temperature: -65 to +150°C.
Features
M5M5V216AWG-70HI features: (1) Single +2.7~+3.6V power supply; (2) Small stand-by current: 0.3μA (3V,typ.) ; (3) No clocks, No refresh; (4) Data retention supply voltage=2.0V to 3.6V; (5) All inputs and outputs are TTL compatible; (6) Easy memory expansion by S, BC1 and BC2; (7) Common Data I/O;; (8) Three-state outputs: OR-tie capability; (9) OE prevents data contention in the I/O bus; (10) Process technology: 0.25μm CMOS; (11) Package: 48 pin 7.0mm x8.5mm CSP.
Diagrams
