Product Summary

The TMS320F2811PBKA is a highly integrated, high-performance solution for demanding control applications.

Parametrics

TMS320F2811PBKA absolute maximum ratings: (1)Supply voltage range, VDDIO, VDDA1, VDDA2, VDDAIO, and AVDDREFBG : -0.3V to 4.6V; (2)Supply voltage range, VDD, VDD1: -0.5V to 2.5V; (3)VDD3VFL range: -0.3V to 4.6V ; (4)Input voltage range, VIN: -0.3V to 4.6V; (5)Output voltage range, VO: -0.3V to 4.6V; (6)Input clamp current, IIK (VIN < 0 or VIN > VDDIO):±20 mA; (7)Output clamp current, IOK (VO < 0 or VO > VDDIO): ±20 mA; (8)Operating ambient temperature ranges, TA: A version (GHH, PGF, PBK): -40 to 85℃; (9)Storage temperature range, Tstg: -65 to 150℃.

Features

TMS320F2811PBKA features: (1)High-Performance Static CMOS Technology: 150 MHz (6.67-ns Cycle Time); Low-Power (1.8-V Core @135 MHz, 1.9-V Core @150 MHz, 3.3-V I/O) Design; (2)JTAG Boundary Scan Support; (3)High-Performance 32-Bit CPU; (4)16 x 16 and 32 x 32 MAC Operations; (5)16 x 16 Dual MAC; (6)Harvard Bus Architecture; (7)Atomic Operations; (8)Fast Interrupt Response and Processing; (9)Unified Memory Programming Model; (10)4M Linear Program/Data Address Reach; (11)Code-Efficient (in C/C++ and Assembly); (12)TMS320F24x/LF240x Processor Source Code Compatible.

Diagrams

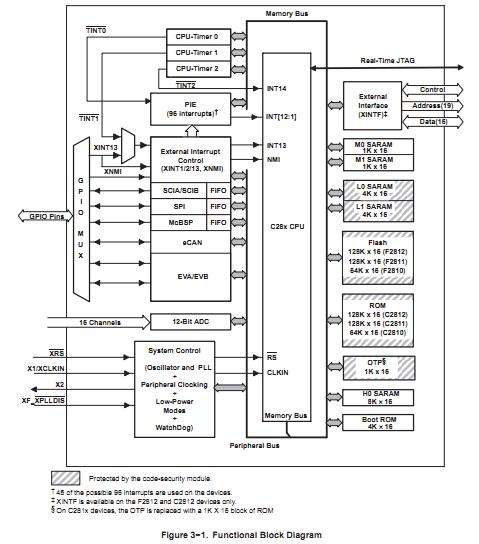

TMS320F2811PBKA functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

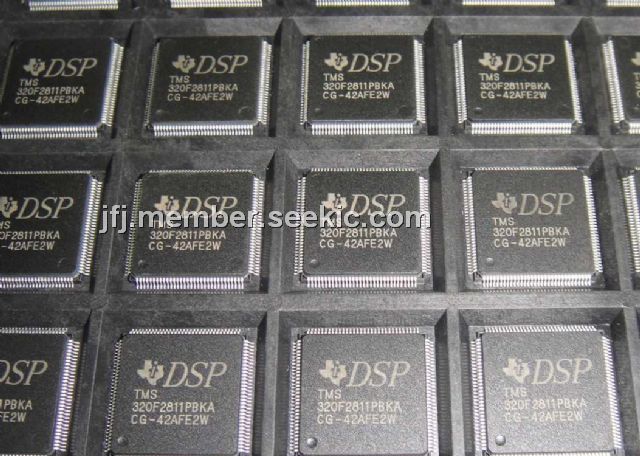

TMS320F2811PBKA
TMS320F2811PBKA

Texas Instruments

Digital Signal Processors & Controllers (DSP, DSC) 32-Bit Digital Sig Controller w/Flash

Data Sheet

0-1: $16.86
1-25: $14.87
25-100: $13.31
100-250: $12.22
