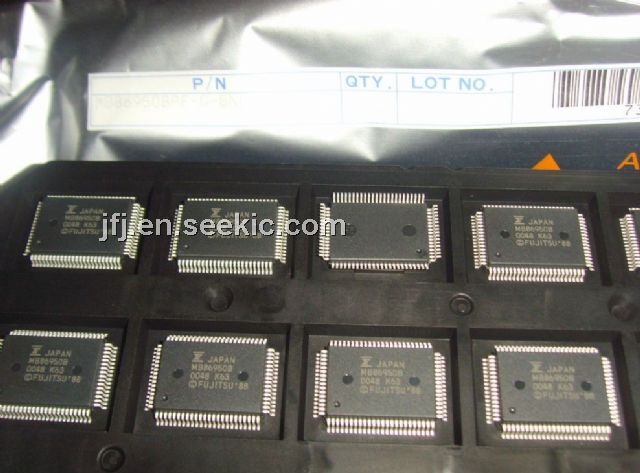

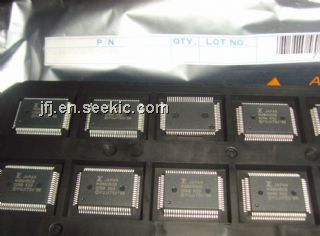

Product Summary

The MB86950BPF-G-BND is a dedicated peripheral LSI for SPARClite. The MB86950BPF-G-BND is designed to enable compact configuration of high-performance systems with SPARClite architecture, and provide the following features.

Parametrics

MB86950BPF-G-BND absolute maximum ratings: (1)Power supply voltage, VDD: -0.5 to +0.6V; (2)Input voltage, VI: -0.5 to VDD + 0.5V; (3)Output voltage, VO: -0.3 to VDD + 0.5V; (4)Storage temperature, TSTG: -40 to 125℃.

Features

MB86950BPF-G-BND features: (1)Direct connection to SPARClite, Register read/write in 2 clock cycles up to 30MHz; Register read/write in 3 clock cycles at 40MHz (MB86941) or 50MHz (MB86942); (2)Built-In On-Chip Modules: Interrupt controller, Interrupt input: 15 channels Each interrupt input has independent masking and trigger mode settings; 16-bit timer: 4 channels, Two of the four channels have prescalers; Each channel has five independent mode operations.

Diagrams

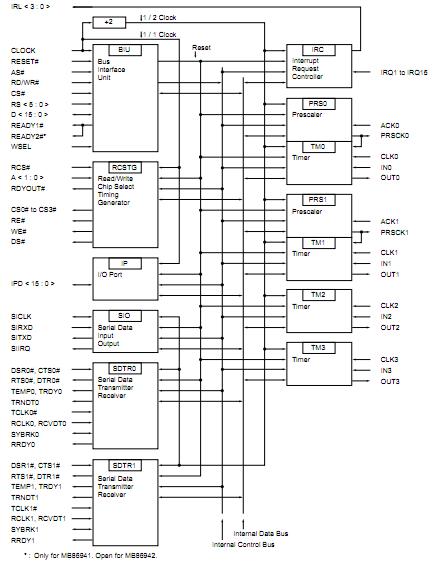

MB86950BPF-G-BND block diagram
