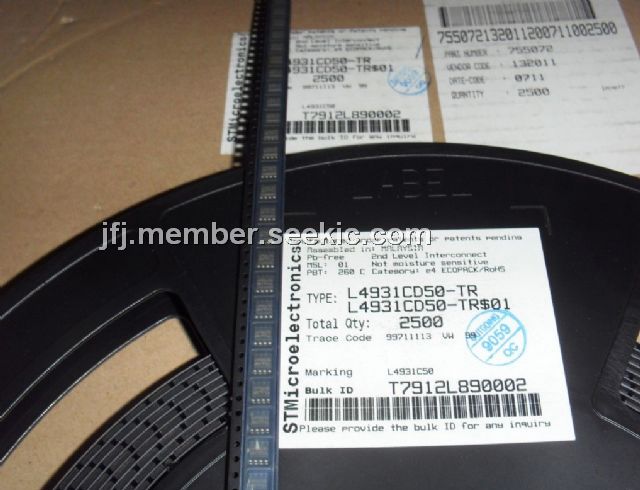

L4931CD50-TR

SOP8, low drop voltage, regulator, 0.4V, 70db, Logic-controlled electronic shutdown, 600μA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.43~0.48 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.43~0.48

PartNumber:: L4931CD50-TR

Brand:: STMicroelectronics - ST | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Helen Li's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-30

From Other Seller

Part Number:L4931CD50-TR
US $0.43 - 0.48
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
LM285M-2.5

US $0.16 - 0.25 / Piece
(0) Remove
Quantity:

piece

Product Summary

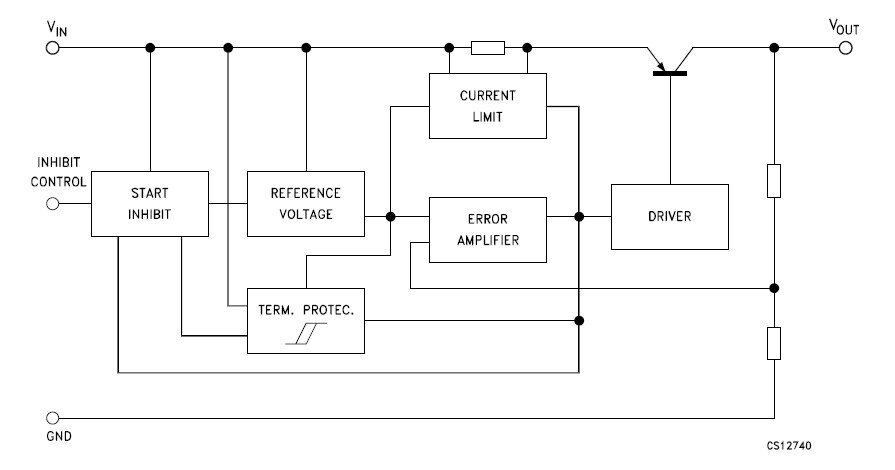

The L4931CD50-TR is a very Low Drop regulator available in TO-220, SO-8, DPAK, PPAK and TO-92 packages and in a wide range of output voltages. The very Low Drop voltage (0.4V) and the very low quiescent current make them particularly suitable for Low Noise, Low Power applications and specially in battery powered systems. In PPAK and SO-8 packages a Shutdown Logic Control function of the L4931CD50-TR is available TTL compatible. This means that when the device is used as a local regulator, it is possible to put a part of the board in standby, decreasing the total power consumption. The L4931CD50-TR requires only a 2.2 μF capacitor for stability allowing space and cost saving.

Parametrics

L4931CD50-TR absolute maximum ratings: (1)VI DC Input Voltage: 20 V; (2)IO Output Current: Internally Limited; (3)Ptot Power Dissipation: Internally Limited; (4)Tstg Storage Temperature Range: -40 to 150 ℃; (5)Top Operating Junction Temperature Range: -40 to 125 ℃.

Features

L4931CD50-TR features: (1)Very low dropout voltage (0.4V); (2)Very low quiescent current (TYP. 50 μA IN OFF MODE, 600μA IN ON MODE); (3)Output current up to 250 mA; (4)Logic-controlled electronic shutdown; (5)Internal current and thermal limit; (6)ONLY 2.2μF for stability; (7)AVAILABLE IN ± 1% (AB) OR 2% (C) SELECTION AT 25℃; (8)Supply voltage rejection: 70db TYP. FOR 5V VERSION; (9)Temperature range: -40 TO 125℃.
