Product Summary
The MB87J6071 is a colour LCD/CRT graphic display controller (GDC) interfacing to MB91xxxx micro controller family and support a wide range of display devices. The architecture of the MB87J6071 is designed to meet the low cost, low power requirements in embedded and especially in automotive applications.
Features
MB87J6071 features: (1)2M words x 32 Bit external SDRAM(64 Mbit); (2)no internal SDRAM; (3)Package: BGA-256P-M01; (4)Chip select sharing for up to four GDC devices; (5)synchronized reset (needs applied clock); (6)2D Drawing and Bitmap Functions, Lines and Polygons; Rectangular Area; Uncompressed Bitmap/1bit pixelmask; Compressed Bitmap (TGA format)/1bit pixelmask; (7)Pixel Memory Access Functions, Put Pixel; Put Pixel FC (fixed colour); Put Pixel Word (packed); Exchange Pixel; Get Pixel; (8)Layer Register for text and bitmap functions; (9)Copy rectangular areas between layers; (10)Anti Aliasing Filter (AAF), resolution increase by factor 2 for each dimension (2x2 filter operator size).

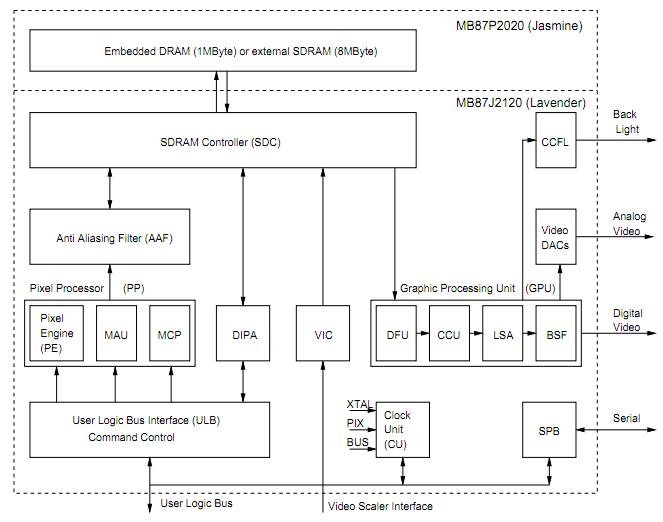

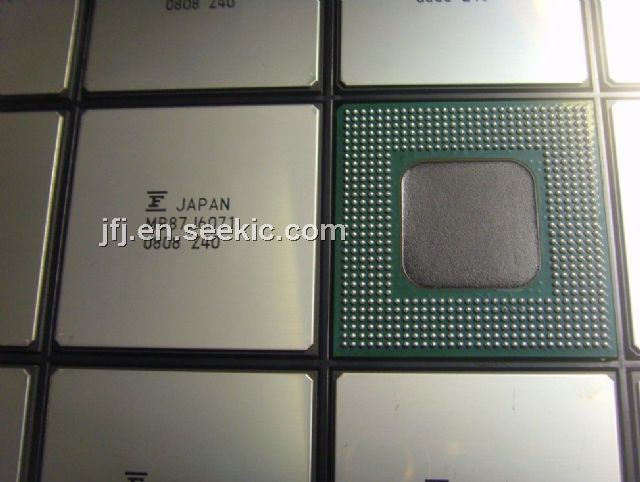

Diagrams
