Product Summary
The MN2DS0016AA is a super single-chip LSI for DVD players. A DVD player can be built by connecting this LSI, a driver IC, SDRAM, a flash memory, audio output DAC, and so on. This LSI builds in Analog Front End (analogFE) for analog signal processing, an optical disk controller which deals with servo control, and error correction, AV decoder which supports MPEG1/MPEG2/JPEG video decoding and DVD Audio/Windows Media Audio (WMA)/MP3 audio decoding, and a 32-bit CPU as a system controller with instruction cache. The applications of the MN2DS0016AA include DVD players for DVD-Audio and DVD-RAM.
Features
MN2DS0016AA features: (1)High readability with built-in analog front-end DRC (digital read channel); (2)Various audio decoding (DVD Audio/WMA/MP3); (3)Progressive output; (4)4.7 G RAM play; (5)FE/BE Unified Memory Architecture; (6)Built-in Audio PLL.

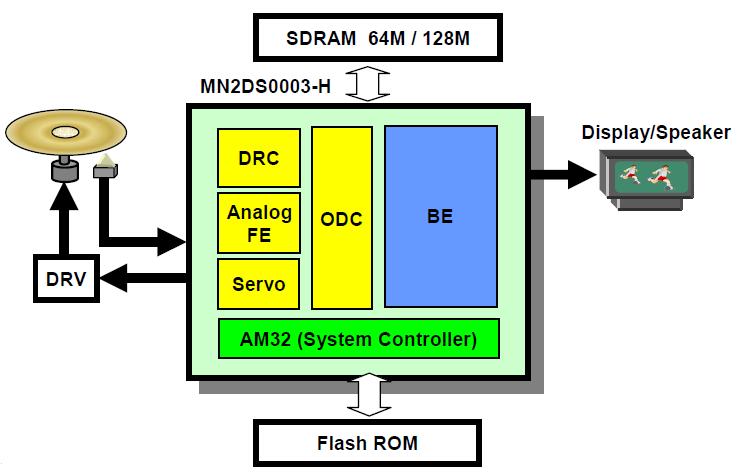

Diagrams
