Product Summary

The AT29C010A-70TU is a 5-volt-only in-system Flash programmable and erasable read only memory (PEROM). Its 1 megabit of memory is organized as 131,072 words by 8 bits. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the AT29C010A-70TU offers access times to 70 ns with power dissipation of just 275 mW over the commercial temperature range. When the device is deselected, the CMOS standby current is less than 100μA. The AT29C010A-70TU endurance is such that any sector can typically be written to in excess of 10,000 times. Reading data out of the device is similar to reading from an EPROM. Reprogramming the AT29C010A-70TU is performed on a sector basis; 128 bytes of data are loaded into the device and then simultaneously programmed.

Parametrics

AT29C010A-70TU absolute maximum ratings: (1)Temperature Under Bias:-55℃ to +125℃; (2)Storage Temperature:-65℃ to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground:-0.6V to +6.25V; (4)All Output Voltages with Respect to Ground:-0.6V to VCC + 0.6V; (5)Voltage on OE with Respect to Ground:-0.6V to +13.5V.

Features

AT29C010A-70TU features: (1)Fast Read Access Time:70 ns; (2)5-volt Only Reprogramming; (3)Sector Program Operation:Single Cycle Reprogram (Erase and Program), 1024 Sectors (128 Bytes/sector),Internal Address and Data Latches for 128 Bytes; (4)Two 8K Bytes Boot Blocks with Lockout; (5)Internal Program Control and Timer; (6)Hardware and Software Data Protection; (7)Fast Sector Program Cycle Time:10 ms; (8)DATA Polling for End of Program Detection ; (9)Low Power Dissipation:50 mA Active Current, 100μA CMOS Standby Current; (10)Typical Endurance >10,000 Cycles; (11)Single 5V ±10% Supply; (12)CMOS and TTL Compatible Inputs and Outputs; (13)Commercial and Industrial Temperature Ranges.

Diagrams

AT29C010A-70TU block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

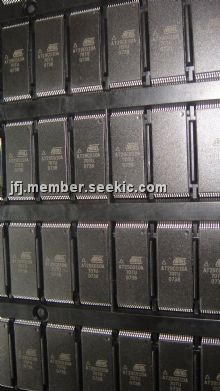

AT29C010A-70TU
AT29C010A-70TU

Atmel

Flash 1M(128Kx8) 5V ONLY 70NS IND TEMP

Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AT29BV010A
AT29BV010A

Other


Data Sheet

Negotiable
AT29BV010A-12JC
AT29BV010A-12JC

Atmel

Flash 1M (128K X 8) 2.7V- 120NS COM TEMP

Data Sheet

Negotiable
AT29BV010A-12JI
AT29BV010A-12JI

Atmel

Flash 1M (128K X 8) 2.7V- 120NS IND TEMP

Data Sheet

Negotiable
AT29BV010A-12JU
AT29BV010A-12JU

Atmel

Flash 1M(128Kx8) 2.7V - 120NS IND TEMP

Data Sheet

Negotiable
AT29BV010A-12TC
AT29BV010A-12TC

Atmel

Flash 1M (128K X 8) 2.7V- 120NS COM TEMP

Data Sheet

Negotiable
AT29BV010A-12TI
AT29BV010A-12TI

Atmel

Flash 1M (128K X 8) 2.7V- 120NS IND TEMP

Data Sheet

Negotiable
