Product Summary

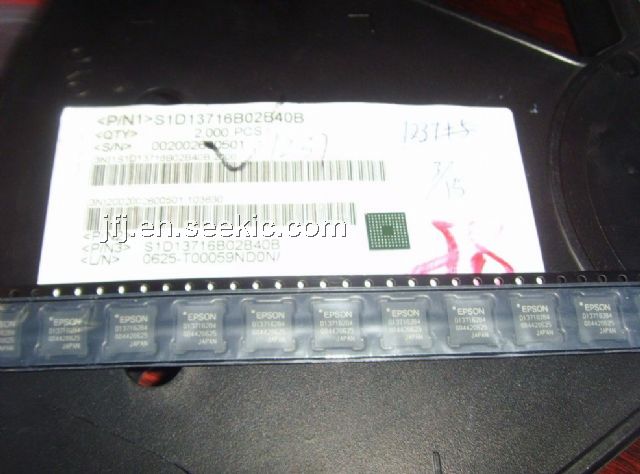

The S1D13716B02B40B is an Embedded Memory Graphics LCD Controller. It can display both text and graphics on an LCD panel. The S1D13716B02B40B allows layered text and graphics, scrolling of the display in any direction, and partitioning of the display into multiple screens. It includes 32K bytes of embedded SRAM display memory which is used to store text, character codes, and bit-mapped graphics. The S1D13716B02B40B handles display controller functions including: transferring data from the controlling microprocessor to the buffer memory, reading memory data, converting data to display pixels, and generating timing signals for the LCD panel.
Parametrics
S1D13716B02B40B absolute maximum ratings: (1)CORE VDD Supply Voltage VSS: - 0.3 to 4.0 V; (2)IO VDD Supply Voltage VSS: - 0.3 to 7.0 V; (3)VIN Input Voltage VSS: - 0.3 to IO VDD + 0.5 V; (4)VOUT Output Voltage VSS: - 0.3 to IO VDD + 0.5 V; (5)TSTG Storage Temperature: -65 to 150℃; (6)TSOL Solder Temperature/Time: 260℃ for 10 sec. max at lead.
Features
S1D13716B02B40B features: (1)Embedded 32K bytes of SRAM display memory; (2)Generic Bus (Z80 family) microprocessor interface; (3)MC68K family microprocessor interface; (4)1/2/4 bit-per-pixel color depth support; (5)Text, graphics and combined text/graphics display modes; (6)Three overlapping screens in graphics mode; (7)Programmable cursor control; (8)Smooth horizontal scrolling of all or part of the display in monochrome mode; (9)Smooth vertical scrolling of all or part of the display in all modes.

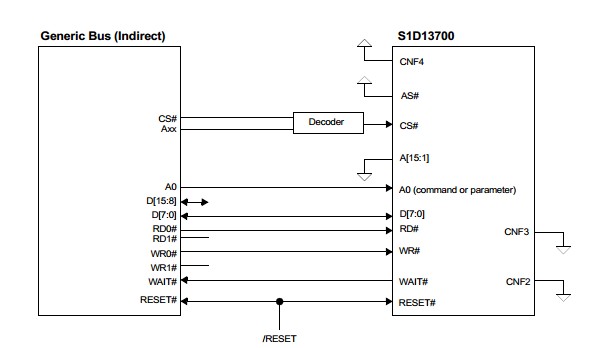

Diagrams
