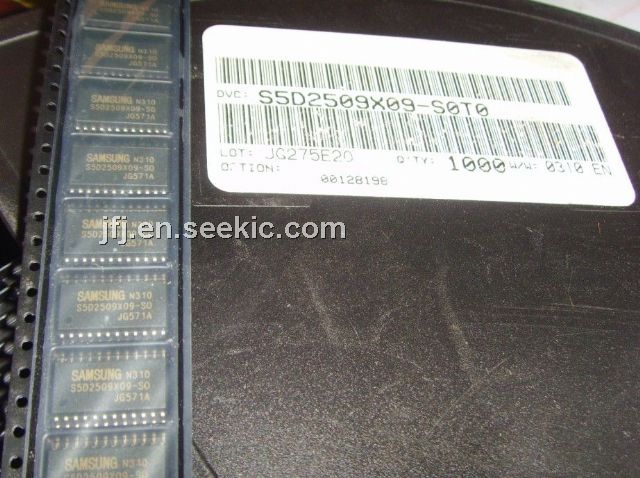

Product Summary
The S5D2509X09-S0T0 is a stand-alone OSD Processor, which is used to display monitor adjustment or status information as a certain character or symbol on screen. Its basic operation includes making the R/ G/ B signal for the character or symbol by controlling the internal memory, synchronizing it with the horizontal flyback signal, and mixing it with the main video signal in the video AMP IC. The font data for making the character or symbol is stored in the internal ROM. The S5D2509X09-S0T0 is accessed and controlled by the control data, transmitted from the micro controller through the I2C bus. The S5D2509X09-S0T0 contains internal PLL circuitry, so all timing control signals, including the system clock, are synchronized with the horizontal flyback signal.
Parametrics
S5D2509X09-S0T0 absolute maximum ratings: (1)Supply Voltage VDD: 0 to 6.5 V; (2)Input Voltage VI: 0 to 5.25 V; (3)Power Dissipation Pd: 1200 mW; (4)Operating Temperature Range Topr: -20 to 70 °C; (5)Storage Temperature Range Tstg: -40 to 125 °C; (6)Supply Current (No load on any output)IDD : 25 mA.
Features
S5D2509X09-S0T0 features: (1)Built in 1K-byte SRAM; (2)PWM DAC Channels with 8 Bit Resolution : 8EA; (3)Selectable Character Color (Up to 16 Color): Font basis; (4)Selectable Raster Color (Up to 16 Color): Font basis; (5)Programmable and Auto-adjustable Vertical Height of Character : Range 18 ¾ 63; (6)Character Blinking and Shadowing : Font basis; (7)Programmable Symmetrical Row to Row Spacing : Range 0 ¾ 31; (8)Horizontal Starting Position : 256 different positions (6 dots for each step); (9)Vertical Starting Position : 256 different positions (4 scan line for each step); (10)Scrolling : Effect where 1 character line is scrolled up or down; (11)4 Programmable Window Function and Window Priority Control; (12)Selectable Window Shadow Width : H/ V 2, 4, 6 and 8 Dots; (13)Supports Background Video Transparency : Font basis or Window basis; (14)Full White Pattern Generation for Manufacturing Mode; (15)Auto Character Height Control; (16)Full-Screen Display RAM Erasing; (17)OSD Vertical Bouncing Auto-Detecting & Correction.

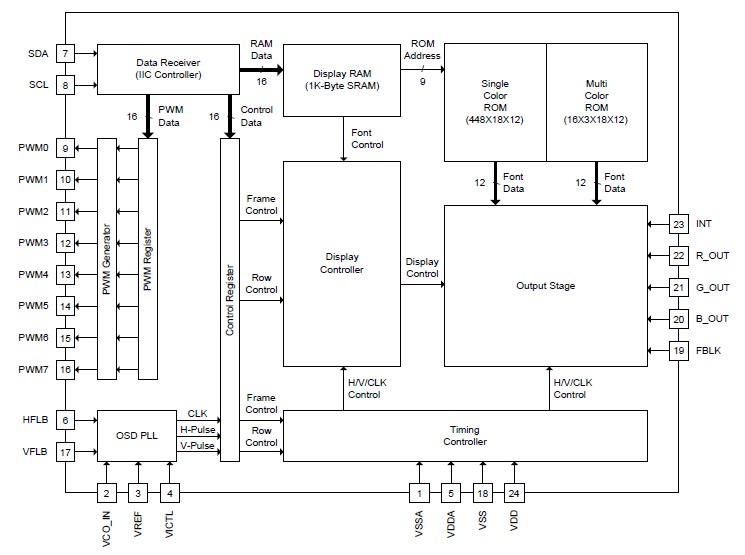

Diagrams
