Product Summary
The W83304CG is a ACPI Controller. The W83304CG provides a complete ACPI compliant power solution for AMD K8 / AM2 platform. W83304CG is used to manage the on/off of the power supplies of key components and sub-systems in a computer system, including CPU, DRAM, Graphics, High Speed I/O and USB, according to the ACPI specification. In addition, under-voltage condition is monitored and the main power supply (e.g. ATX) is shut-down to prevent damage to the system. Soft-start feature reduces stress on power supply components and increase product reliability.
Parametrics
W83304CG absolute maximum ratings: (1)Voltage Supply: 4.75 V ~ 5.25 V; (2)Current Supply: 1mA; (3)Package / Case: 48-LQFP; (4)Packaging: Tray; (5)Operating Temperature: 0℃ ~ 70℃; (6)Lead Free Status: Lead Free; (7)RoHS Status: RoHS Compliant.
Features
W83304CG features: (1)Provides Signals for ATX Power Supply PS_ON# Control; (2)Support AMD K8 Claw Hammer Specific Power Up/Down Sequence; (3)Provides fault signal control.; (4)Internal Charge Pump Support Up to 9.5VSB; (5)Drive All N-Channel MOSFET; (6)Soft Start; (7)Under-Voltage Monitoring for VAGP, VRAM, VLDT, 3.3VDUAL Channels.

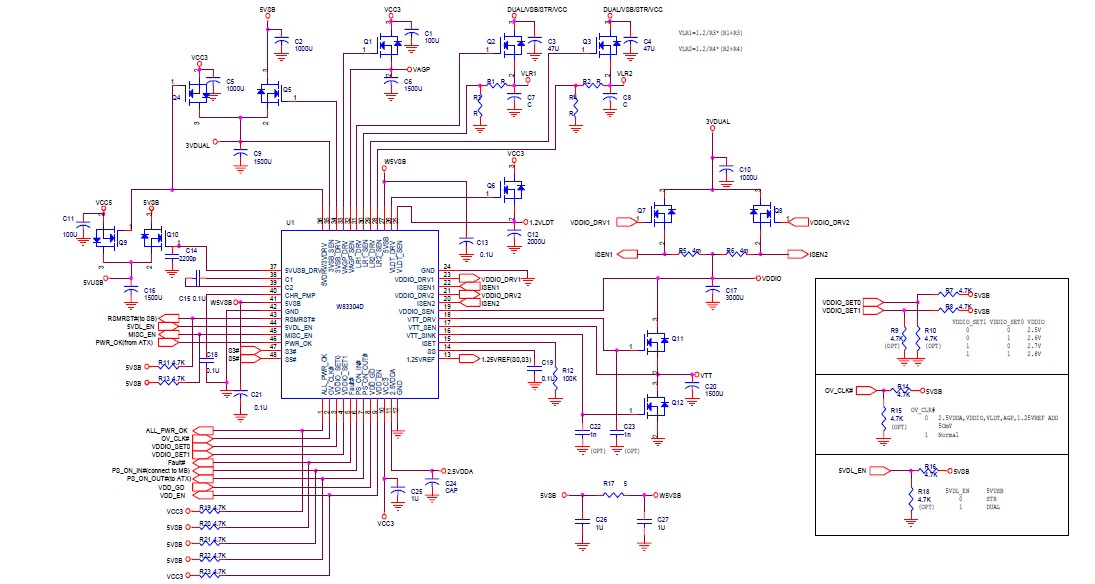

Diagrams
