Product Summary

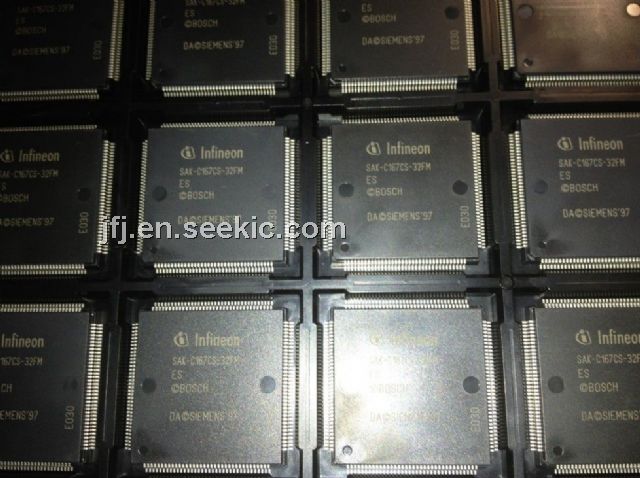

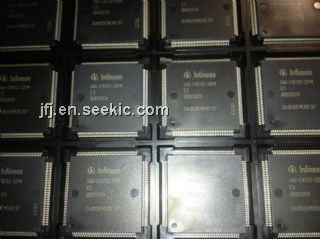

The SAK-C167CS-32FM is a 32-Bit Single-Chip Microcontroller. The SAK-C167CS-32FM derivatives are high performance derivatives of the Infineon C166 Family of full featured single-chip CMOS microcontrollers. The device combines high CPU performance (up to 16.5 million instructions per second) with high peripheral functionality and enhanced IO-capabilities. The SAK-C167CS-32FM also provides clock generation via PLL and various on-chip memory modules like program ROM, internal RAM, and extension RAM.
Parametrics
SAK-C167CS-32FM absolute maximum ratings: (1)Storage temperature, TSTG: –65 to 150℃; (2)Junction temperature, TJ: –40 to 150℃; (3)Voltage on VDD pins with respect to ground (VSS), VDD: –0.5 to 6.5 V; (4)Voltage on any pin with respect to ground (VSS), VIN: –0.5 to VDD + 0.5 V; (5)Input current on any pin during overload condition: –10 to 10 mA; (6)Absolute sum of all input currents during overload condition: |100| mA; (7)Power dissipation PDISS: 1.5W.
Features
SAK-C167CS-32FM features: (1)High Performance 16-bit CPU with 4-Stage Pipeline; (2)16-Priority-Level Interrupt System with 56 Sources, Sample-Rate down to 40/30 ns; (3)8-Channel Interrupt-Driven Single-Cycle Data Transfer Facilities via Peripheral Event Controller (PEC); (4)Clock Generation via on-chip PLL (factors 1:1.5/2/2.5/3/4/5), via prescaler or via direct clock input; (5)Idle, Sleep, and Power Down Modes with Flexible Power Management; (6)Programmable Watchdog Timer and Oscillator Watchdog; (7)Up to 111 General Purpose I/O Lines, partly with Selectable Input Thresholds and Hysteresis.

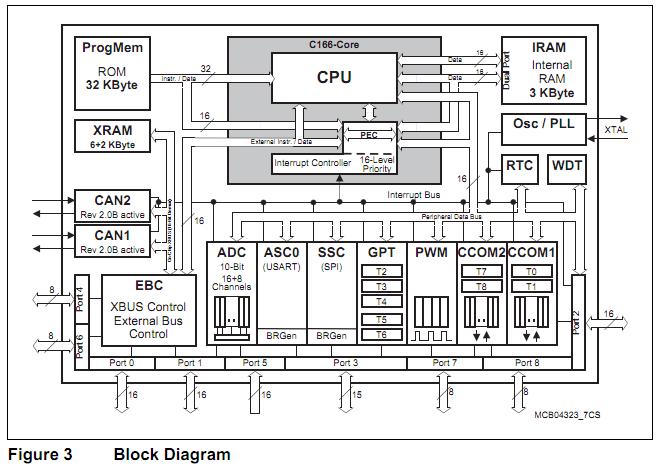

Diagrams
