Product Summary
The TDA4862G is a power-factor controller (PFC) IC for high power factor and active harmonic filter. The TDA4862G is excellent convenient for designing a preconverter in ballasts and switched mode power supplies with sinusoidal line current consumption and a power factor approaching unity. The TDA4862G controls a boost converter as an active harmonics filter in a discontinuous mode (free oscillating triangular shaped current mode). The TDA4862G comprises an internal start-up timer, a high gain voltage amplifier, an one quadrant multiplier for approaching unity power factor, a zero current detector, PWM and logic circuitry, and totem pole MOSFET gate driver.
Parametrics
TDA4862G absolute maximum ratings: (1)Supply voltage at VCC Pin 8: 0.3V; (2)supply + Z-current VCC-GND Pin 8: 0 to 70mA; (3)Junction temperature Tj: – 40 to 150 °C; (4)Storage temperature Tstg: – 50 to 150 °C; (5)Voltage at VSENSE Pin 1: -0.3 to 17V.
Features
TDA4862G features: (1)IC for sinusoidal line-current consumption; (2)Power factor approaching 1; (3)Controls boost converter as an active harmonics filter; (4)Internal start-up with low current consumption; (5)Zero current detector for discontinuous operation mode; (6)High current totem pole gate driver; (7)Trimmed ± 1.4% internal reference; (8)Undervoltage lock-out with hysteresis; (9)Very low start-up current consumption; (10)Pin compatible to world standard; (11)Fast overvoltage regulator; (12)Current sense input with internal low pass filter.

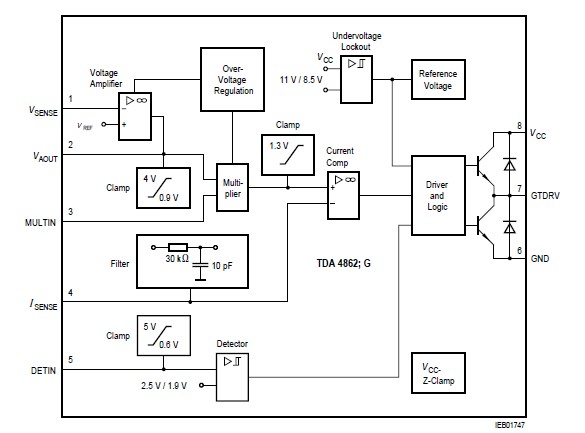

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TDA4862G |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
TDA4862G GEG |
Infineon Technologies |
Power Factor Correction ICs POWER-FACTOR CONTROLLER |
Data Sheet |
|
|
||||||||||||
|
TDA4862GGEGNT |
Infineon Technologies |
Power Factor Correction ICs PFC IC High Power Active Harmonic Fltr |
Data Sheet |
Negotiable |
|
||||||||||||
