Product Summary

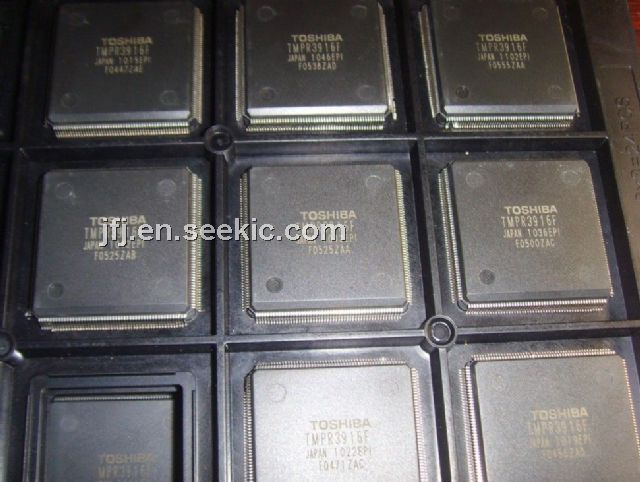

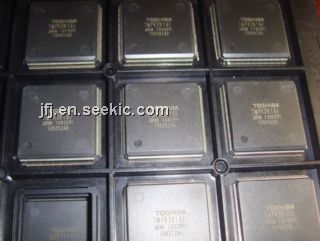

The TMPR3916F is a 32-bit system RISC. Applications are (1)Car Navigation Systems; (2)Driver Information Displays; (3)Personal Digital Assistants (PDAs); (4)Musical Instruments; (5)Electronic Book Players.
Parametrics
TMPR3916F absolute maximum ratings: (1)Power supply voltage VDD: -0.3 to 6.0 V; (2)Input voltage Vin: -0.3 to VDD + 0.3 V; (3)Power dissipation TC94A04AFD PD: 1538 mW; (4)Operating temperature Topr: -40 to 75 °C; (5)Storage temperature Tstg: -55 to 150 °C.
Features
TMPR3916F features: (1)60 MHz maximum operating frequency:; (2)208 pin QFP package (QFP208-P-2828-0.50); (3)3.3 V power supply voltage; (4)Burst access to frame-buffer memory; (5)16 bytes built-in dot buffer; (6)Built-in color look-up tables (for plane A-D, 544 colors in total); (7)Built-in three-channel 6-bit video DAC, alternatively connection to digital displays (digital RGB output); (8)Dotclock, horizontal and vertical synchronisation signals can be generated internally or input from external device.

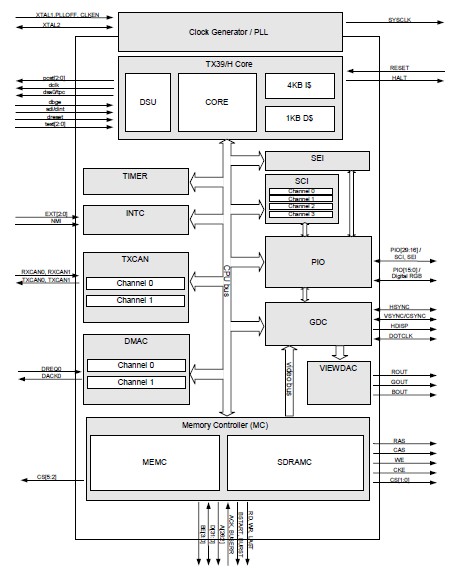

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TMPR3916F(Z) |
Toshiba |
Microprocessors (MPU) 32-bit MIPS RISC Processor |
Data Sheet |
Negotiable |
|
||||||||||||
