Product Summary

The TQM6M4002B is an advanced quad-band Transmit Module designed for mobile handset applications provides full RF transmit functionality in a size of only 36 mm2. The TQM6M4002B including power control are combined with the low insertion loss quad-band pHEMT switch, Tx harmonics filtering, integrated switch decoder, four receive ports, and full ESD protection. This architecture eliminates the need for any PA-to-switch design effort for phone designers. Applications are (1)GSM GPRS Handsets and Modems; (2)Dual-, Tri-, Quad-band Class 12 Compatible.

Features

UAA3595HN/C3 features: (1)Ultra Compact Size – 6.0x6.0x1.1mm3.; (2)High System Efficiency – GSM850 40%, GSM900 45% , DCS/PCS 38%; (3)Integrated Power and SP6T Control; (4)Integrated SP6T pHEMT Switch; (5)Free choice of Rx ports for band selection; (6)Integrated Low Pass Tx Harmonics Filter; (7)Positive Supply Voltage 3.0 to 4.5 V; (8)50 Ω Input and Output Impedances; (9)GPRS Class 12 Compatible; (10)CMOS Compatible Module Control Inputs; (11)High-Reliability InGaP HBT Technology; (12)Ruggedness 30:1.

Diagrams

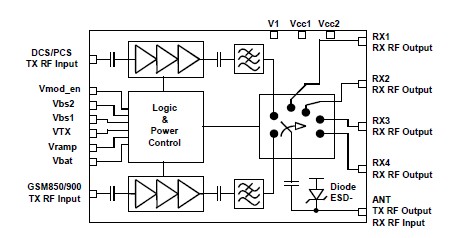

TQM6M4002B pin connection
