Product Summary
The UAA3547HN/C1 is a low-power, highly integrated circuit, for Digital Enhanced Cordless Telecommunication (DECT) applications. It features a fully integrated channel selection filter, an analog Received Signal Strength Indicator (RSSI) and a switched demodulator output to interface to Philips Semiconductors ABC baseband chip. The UAA3547HN/C1 can be fully powered down during the idle locked state.
Parametrics
UAA3547HN/C1 absolute maximum ratings: (1)supply voltage: -0.3 to +3.6 V; (2)input voltage on pins PD and SLCCTR: -0.3 to +3.6 V; (3)maximum input power: 15 dBm; (4)maximum operating junction temperature: 150 ℃; (5)maximum power dissipation in quiet air: 180 mW; (6)storage temperature: -55 to +125℃.
Features
UAA3547HN/C1 features: (1)Single-chip RF plus IF; (2)Integrated channel filter; (3)Low component count; (4)No production trimming; (5)High dynamic range; (6)Low power; (7)3.2 V operation; (8)Built-in power-down mode.

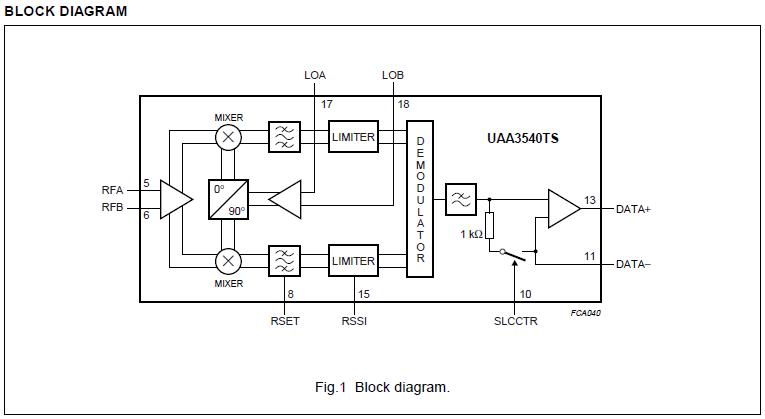

Diagrams
