Product Summary

The KU80C186EC20 is a 16-bit high-integration embedded processor.

Parametrics

KU80C186EC20 absolute maximum ratings: (1)Storage Temperature: -65℃ to a150℃; (2)Case Temperature Under Bia: -65℃ to +100℃; (3)Supply Voltage with Respect to VSS: -0.5V to +6.5V; (4)Voltage on Other Pins with Respect to VSS: -0.5V to VCC + 0.5V.

Features

KU80C186EC20 features: (1)Low-Power, Static, Enhanced 8086 CPU Core; (2)Two Independent DMA Supported UARTs, each with an Integral Baud Rate Generator; (3)Four Independent DMA Channels; (4)Direct Addressing Capability to 1 Mbyte Memory and 64 Kbyte I/O; (5)Low-Power Operating Modes; (6)Available in Extended Temperature Range (b40℃ to a85℃); (7)Supports 80C187 Numerics Processor Extension.

Diagrams

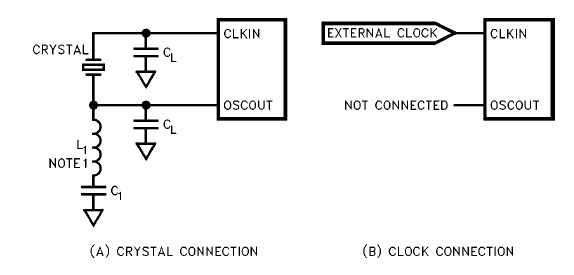

KU80C186EC20 Clock Connections

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
KU80C186EC20
KU80C186EC20

IC MPU 16BIT 5V 20MHZ 100QFP
Data Sheet
Negotiable
