Product Summary
The CXM3519ER-T2 is a antenna switch module for GSM and UMTS/CDMA Dual mode handset. The CXM3519ER-T2 is a SP9T/SP10T antenna switch module for GSM and UMTS/CDMA dual-mode handset. This IC has a built-in dual low pass filter and a +1.8V CMOS compatible decoder. The CXM3519ER-T2 has low BOM and small mount Area with no DC blocking capacitor.
Parametrics
CXM3519ER-T2 absolute maximum ratings: (1)Bias voltage (VDD): 4V (Ta: +25℃); (2)Control voltage (CTL-A/B/C/D): 4V (Ta: +25℃); (3)Maximum input power (Tx1): +36dBm (Duty cycle = 12.5%) (Ta: +25℃); (4)Maximum input power (Tx2): +34dBm (Duty cycle = 12.5%) (Ta: +25℃); (5)Maximum input power (TRx1, 2, 3, 4): +32dBm (Ta: +25℃); (6)Maximum input power (Rx1, 2, 3, 4): +13dBm (Ta: +25℃); (7)Operating temperature: –20 to +90℃; (8)Storage temperature: –65 to +150℃.
Features
CXM3519ER-T2 features: (1)Low insertion loss; (2)Low insertion loss; (3)High attenuation; (4)Low voltage operation; (5)No DC blocking capacitors; (6)Small package.

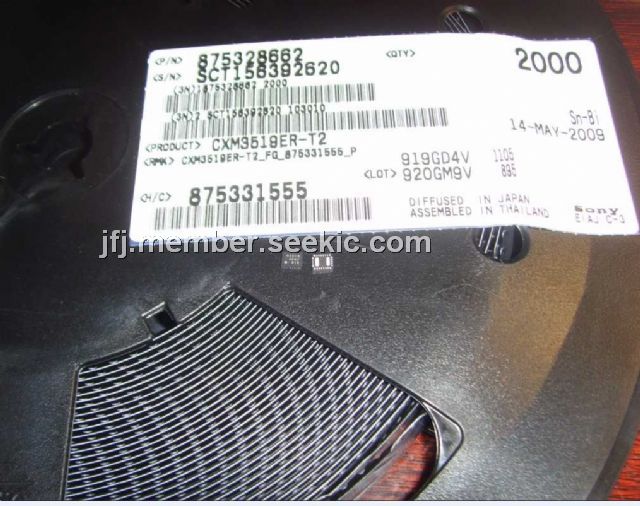

Diagrams
