Product Summary

The A40MX04VQ80 is an FPGA. It offers a cost-effective design solution at 5V. The device is a single-chip solution and provides high performance while shortening the system design and development cycle. The A40MX04VQ80 can integrate and consolidate logic implemented in multiple PALs, CPLDs, and FPGAs. Example applications of the A40MX04VQ80 include high-speed controllers and address decoding, peripheral bus interfaces, DSP, and coprocessor functions.

Parametrics

A40MX04VQ80 absolute maximum ratings: (1)VCC DC Supply Voltage: –0.5 to +7.0 V; (2)VI Input Voltage: –0.5 to VCC+0.5 V; (3)VO Output Voltage: –0.5 to VCC+0.5 V; (4)tSTG Storage Temperature: –65 to +150 ℃.

Features

A40MX04VQ80 features: (1)High Capacity: Single-Chip ASIC Alternative; 3,000 to 54,000 System Gates; Up to 2.5 kbits Configurable Dual-Port SRAM; Fast Wide-Decode Circuitry; Up to 202 User-Programmable I/O Pins; (2)High Performance: 5.6 ns Clock-to-Out; 250 MHz Performance; 5 ns Dual-Port SRAM Access; 100 MHz FIFOs; 7.5 ns 35-Bit Address Decode.

Diagrams

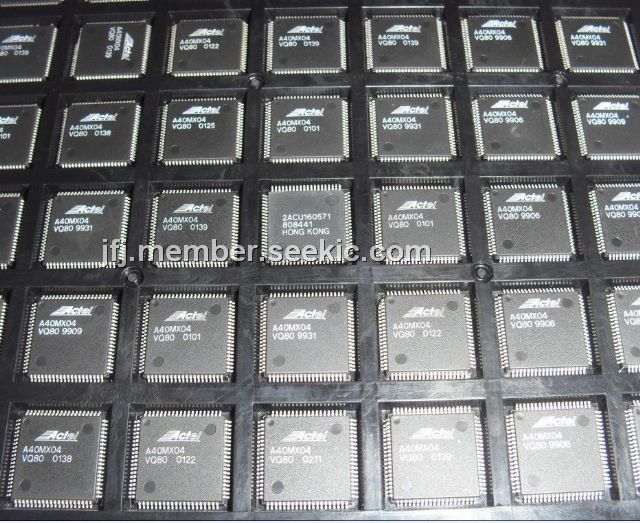

A40MX04VQ80 diagram
