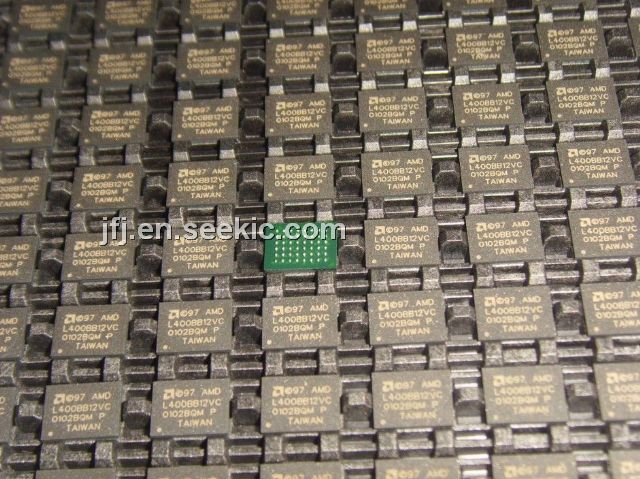

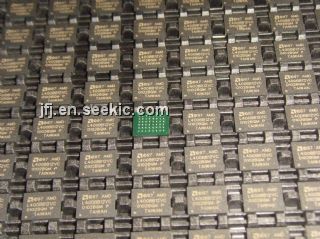

Product Summary

The AM29LV400BB-120WAC is an 4 Mbit, 3.0 volt-only Flash memory organized as 524,288 bytes or 262,144 words. The AM29LV400BB-120WAC requires only a single 3.0 volt power system reset circuitry. The AM29LV400BB-120WAC is entirely command set compatible with the JEDEC single-power-supply Flash standard.

Parametrics

AM29LV400BB-120WAC absolute maximum ratings: (1) Vcc (Supply Voltage): 2.7 to 3.6V; (2) Operating Temperature Commerical: 0 to 70°C, Industrial: -40 to +85°C, Extended: -55 to +125°C.

Features

AM29LV400BB-120WAC features: (1) Single power supply operation; (2) Manufactured on 0.32μm process technology; (3) Low power consumption (typical values at 5MHz) ; (4) Flexible sector architecture; (5) Unlock Bypass Program Command; (6) Top or bottom boot block configurations available; (7) Embedded Algorithms; (8) Minimum 1,000,000 write cycle guarantee persector; (9) persector Compatibility with JEDEC standards; (10) Erase Suspend/Erase Resume.

Diagrams

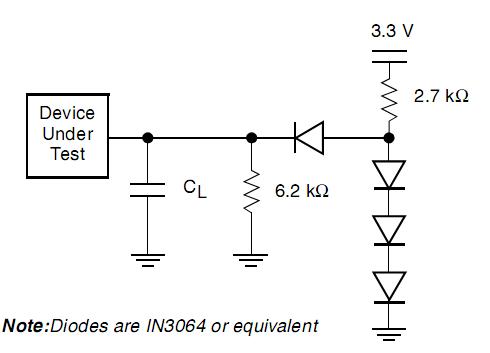

AM29LV400BB-120WAC Circuit
