Product Summary
AM29LV800BT-90EC is an 8 Mbit, 3.0 volt-only Flash memory organized as 1,048,576 bytes or 524,288 words. The AM29LV800BT-90EC is offered in 48-ball FBGA, 44-pin SO, and 48-pin TSOP packages. The AM29LV800BT-90EC is also available in Known Good Die (KGD) form. The AM29LV800BT-90EC is manufactured using AMD 0.3μm process technology, and offers all the features and benefits of the Am29LV800, which was manufactured using 0.5 μm process technology.
Parametrics
AM29LV800BT-90EC absolute maximum ratings: (1) Storage Temperature Plastic Packages: -65 to +150°C; (2) Ambient Temperature with Power Applied: -65 to +125°C; (3) Output Short Circuit Current (Note 3) : 200mA; (4) Output Short Circuit Current (Note 3) : Vcc: -0.5V to +4.0V; (5) A9, OE#, and RESET# (Note 2) : -0.5V to +12.5V; (6) All other pins (Note 1) : -0.5V to Vcc +0.5V.
Features
AM29LV400BB-120EC features: (1) Single power supply operation; (2) Manufactured on 0.32μm process technology; (3) High performance; (4) Low power consumption (typical values at 5MHz) ; (5) Flexible sector architecture; (6) Unlock Bypass Program Command; (7) Top or bottom boot block configurations available; (8) Embedded Algorithms; (9) Tested to datasheet specifications at temperature; (10) Quality and reliability levels equivalent to standard packaged components.

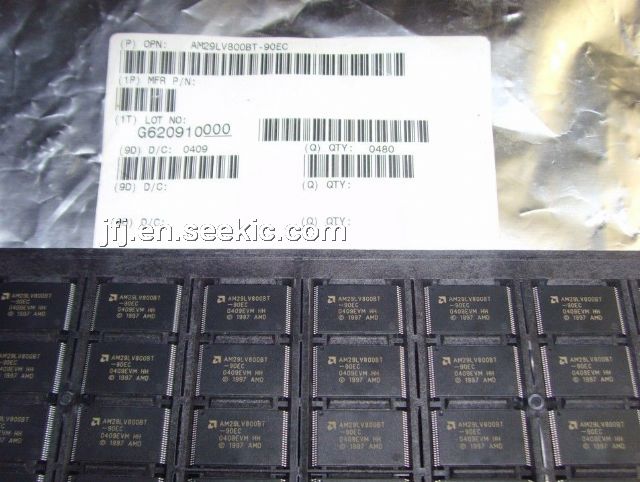

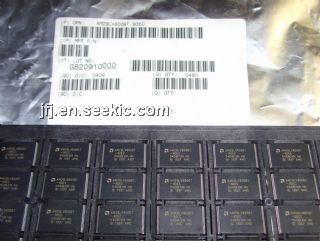

Diagrams
