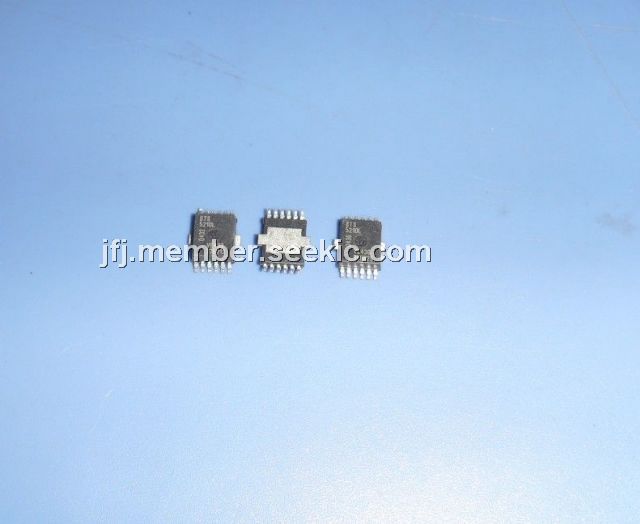

BTS5210L

PDSO-12, 5.5 V ~ 40 V, 110 mOhm, 2.4A, vertical power MOSFET

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.50~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.50~2.00

PartNumber:: BTS5210L

Brand:: Infineon Technologies AG - Infineon | Pack: DIP | D/C: 04+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Helen Li's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-14

From Other Seller

Part Number:BTS5210L
US $1.50 - 2.00
DAD1000

US $2.50 - 3.50 / Piece
(0) Remove
STK795-820

US $20.00 - 25.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

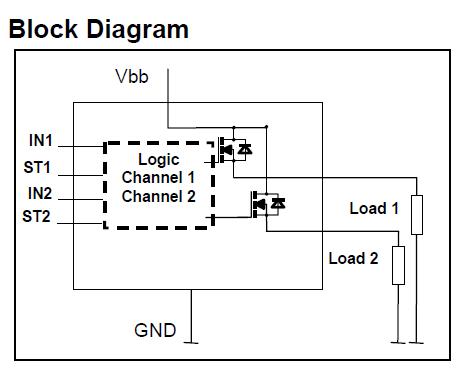

The BTS5210L is an N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS technology. It provides embedded protective functions. The applicaitons of the BTS5210L include μC compatible high-side power switch with diagnostic feedback for 12V and 24V grounded loads, All types of resistive, inductive and capacitve loads, Most suitable for loads with high inrush currents, so as lamps and Replaces electromechanical relays, fuses and discrete circuits.

Parametrics

BTS5210L absolute maximum ratings: (1)Supply voltage (overvoltage protection): 43 V; (2)Supply voltage for full short circuit protection; Tj = -40 to 150℃: 36 V; (3)Load current (Short-circuit current): self-limited A; (4)Load dump protection VLoadDump = VA + VS; VA = 13.5 V: 60 V; (5)Operating temperature range: -40 to +150 ℃; (6)Storage temperature range: -55 to +150 ℃.

Features

BTS5210L features: (1)Very low standby current; (2)CMOS compatible input; (3)Improved electromagnetic compatibility (EMC); (4)Fast demagnetization of inductive loads; (5)Stable behaviour at undervoltage; (6)Wide operating voltage range; (7)Logic ground independent from load ground.
